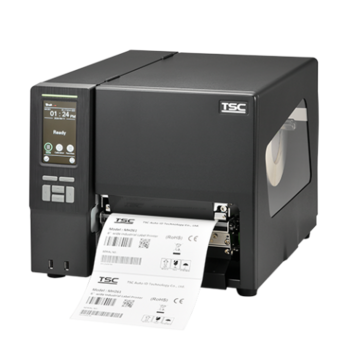

TSC MH341P Thermal Transfer Printer

Code: MH341P-A001-0004
$3804.90 (inc GST)
$3459.00 (exc GST)

TSC MH341P Industrial Barcode Label Printer

The MH340 Series is TSC's mainstream industrial barcode label printer built upon the legacy of the MH340 Series. It brings new
features to those looking for labelling solutions to address evolving business challenges from growing production line demands to increasing
operational complexities.

The MH341P Series is equipped with sophisticated TSC Sense Care supported by SOTI Connect and TSC Console remote printer
management to monitor printer status and give warning messages to ensure maximum productivity and avoid downtime.

Capable of seamless connectivity, the MH341 Series is supported by both Apple-certified MFi Bluetooth 5.0 or 802.11 a/b/g/n/ac
Wi-Fi with Bluetooth 4.2 combo module that turns the barcode label printer into a connected network.


Sophisticated TSC Sense Care
The TSC TPH Care Mechanism offers an advanced level of auto-detection ensuring real-time printhead health status, to monitor and prevent down. In addition, the MH261 series supports various media with a pre-printed black mark on top or bottom sides by user’s selection in the panel menu.

Dynamic Remote Printer Management
SOTI Connect and TSC Console provide enterprise remote printer management on multiple tasks to reduce maintenance costs and avoid downtime of business-critical devices.

The MH341 series offers GPIO to support common applicators and emulations along with an optional 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module.

Highly Adaptable to Various Media
MH341 printers can adapt to various media lengths and widths. The MH341P supports media width up to 6.8-inches, and the MH341P supports up to 4.5-inches. Additionally, the mechanism for fine adjustment to avoid ribbon wrinkles and ensures label print quality.

Brilliant User Experience
The MH341T and MH341P can easily adjust the media near-end sensor to detect the media and remind users to change the media roll on the color GUI display. The MH341 series allows users to easily replace printhead and platen roller without the need for specific tools.


  • Warehouse & Logistics
  • Packing
  • Order Fulfilment
  • Shipping/Receiving
  • Inventory Management
  • Manufacturing
  • Work In Process
  • Product Marking
  • Compliance Labeling
  • Retail
  • Product Label

Printer Specifications Include:

Model MH341P
Print Specification Resolution 12 dots/mm (203 DPI)
Max. print speed 305 mm (12”)/second
Max. print width 104 mm (4.09")
Max. print length 11,430 mm (450")
Printing method Thermal Transfer & Direct Thermal
LCD/LED LCD/LED 4.3" Colour Touch Screen
Memory SDRAM 256 MB
Flash 512 MB
Ribbon & Media Capacity Ribbon capacity 600 m long, max. O.D. 90 mm, 1” core (ink coated outside or inside)
Ribbon width 50.8 mm ~ 178 mm (2” ~ 7”)
Media type Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width 20 ~ 114 mm (0.79" ~ 4.5")
Media thickness 0.06 ~ 0.28 mm (2.36 ~ 11 mil)
Media core diameter 3.81 mm / 76.2 mm (1.5”/ 3”)
Media length 5 ~ 25,400 mm (0.20” ~ 1,000”)
Media roll capacity 203.2 mm (8”) O.D.
Interface Standard • USB 2.0
Options • GPIO + Parallel
• internal Bluetooth
• 802.11 a/b/g/n Wi-Fi
Software Support Software support Windows, Oracle, Microsoft SQL Server, BarTender, Nice Label
Physical characteristics Dimension 276 mm (W) x 326 mm (H) x 502 mm (D) 10.87” (W) x 12.83” (H) x 19.76” (D
Weight 15.6 kg (34.39 lbs)
