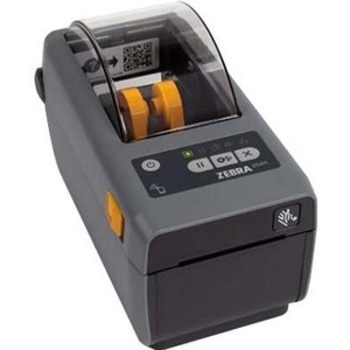

ZEBRA D/TOP ZD411 203DPI D/T BT/USB/WIFI MOD/S

Code: (LP)PRZZD4A022D0PW02EZ

Zebra ZD411 - Wifi

Direct Thermal Transfer Printer

Elevate your expectations with the advanced 2-inch compact desktop printer that delivers the features, flexibility and security you need for years of performance – all in an incredibly small footprint. Direct thermal, thermal transfer and healthcare models support a wide variety of label and tag applications for nearly any 2-inch use case.

Featuring Zebra’s exclusive Print DNA software suite, the ZD411 allows easy setup, operation and maintenance – onsite or remotely. Unlike other brands, Zebra’s printers give you peace-of-mind security with PrintSecure, part of Print DNA, to prevent downtime and costly cyberattacks.

See status quickly via icons on the intuitive user interface. With a new architecture for added power along with new options including field-installable media handling designs and wireless communication, it’s also engineered to grow with your business for years of hassle-free printing. Enquire with us today for the portable battery accessory to print on the go.

Ideal for these applications:

Retail

• Shelf label

• Price markdown

• Pharmacy label

• Information label

• Food safety label

• Receipts

• Deli label

Hospitality

• Auto service

reminder

• Ticketing

• Event wristbands

• Kiosks

Healthcare

• Specimen collection

• Prescription labeling

• Lab management

• Patient ID wristband

• Assets label

• Patient records

Government

• Document tracking

• Evidence tracking

• Agency label

• Product label

Standard Features:

• Print methods: Thermal Transfer or Direct Thermal

• ZPL and EPL programming languages

• 5 status icon, 3 button user interface

• USB 2.0, USB Host

• Printer setup mobile app for Android & iOS via BLE

(Bluetooth Low Energy 5) connection*

* BLE is provided for use with Zebra printer setup mobile app only

• Real Time Clock (RTC)

• OpenACCESS™ for easy media loading

• Dual-wall frame construction

• ENERGY STAR® certified

• ZebraDesigner Essentials – easy label design tool free at

www.zebra.com/zebradesigner

• PDF Direct

• Two-year standard warranty

Resolution

203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)

Memory

512 MB Flash; 256MB DDR3 SDRAM

Print width

2.2 in./56 mm for 203 dpi
2.13 in./54 mm for 300 dpi

Print length

Minimum: 0.25 in./6.35 mm
Maximum: 39.0 in./991 mm

Print speed

6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi)

Media sensors

Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor

Media characteristics

Maximum Label Length
Minimum: 0.25 in./6.35 mm Maximum: 39.0 in./991 mm
Media Width
Minimum: 0.585 in./15 mm Maximum: 2.25 in./57 mm
Media Roll Size
Maximum outer diameter: 5.00 in./127 mm
Core inner diameter: 0.5 in./12.7 mm and
1.0 in./25.4 mm standard, 1.5 in./38.1, 2.0 in./50.8 mm
and 3.0 in./76.2 mm using optional adapters
Thickness
0.0024 in./0.06 mm min; 0.0075 in./0.1905 mm max. (tear-off mode only)

Media Types

Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands

Ribbon Outside Diameter

1.34 in./34 mm (74 m)

Maximum Ribbon Length

243 ft./74 m

Ribbon Ratio

1:1 ribbon to media

Ribbon Width

1.3 in./33 mm - 2.24 in./58 mm

Ribbon Core I.D.

0.5 in./12.7 mm

Operating characteristics

Operating Temp. 40° to 105° F/4.4° to 41° C
Storage Temp. -40° to 140° F/-40° to 60° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Electrical Auto-detectable (PFC Compliant) 100-240VAC,
50-60Hz; ENERGY STAR certified; Energy Efficiency
Level VI certified; optional 2750 mAh battery;
Healthcare models include IEC60601-1 certified power supply

Physical characteristics

Dimensions

ZD411d:
8.6 in. L x 4.5 in. W x 6.0 in. H
220 mm L x 115 mm W x 151 mm H
ZD411t:
9.56 in. L x 5.46 in. W x 6.66 in. H
242.9 mm L x 138.7 mm W x 169.2 mm H

Options and accessories

Healthcare: Our healthcare direct thermal model includes white

color scheme, healthcare-compliant power supply,

disinfectant-ready, easy-to-clean plastics and

sealed button interface, and UV-resistant housing

Media Handling: Dispenser/Peeler: label peel and present with label

present sensor (factory installed or field installable) Cutter (field installable)

Communications: Field installable Ethernet 10/100, Serial RS-232

auto-sensing, wireless dual radio – 802.11ac Wi-Fi

and Bluetooth Classic 4.1

Battery: Provides power to the printer to support a full shift

of printing at maximum print speed; supports all

media handling options

Real Time Clock: Real time clock included as standard on network

connected models

Keyboard Display Unit: ZKDU keyboard display unit for stand-alone printing solution

Mounting Adapter Bracket: Enable printer to be mounted in same location as LP/TLP2824 Plus printer

Barcode symbologies

Barcode Ratios 2:1 and 3:1
1D Barcodes Code: 11, Code 39, Code 93, Code 128, ISBT-128,
UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or
5-digit extensions, Plessey, Postnet, Standard
2-of-5, Industrial 2-of-5, Interleaved 2-of-5,
Logmars, MSI, Codabar and Planet Code
2D Barcodes: Codablock, PDF417, Code 49, DataMatrix,
MaxiCode, QR Code, MicroPDF, Aztec

Fonts and graphics

16 resident expandable ZPL II bitmap fonts, two
resident scalable ZPL fonts, five resident expandable
EPL2 fonts, native open-type font support, Unicode
compliant. China units include SimSun simplified
Chinese font 64 MB user available non-volatile
memory, 8 MB user available SDRAM

Electrical specifications

Auto-detectable (PFC Compliant) 100-240VAC,

50-60Hz; ENERGY STAR certified; Energy Efficiency

Level VI certified; optional 2750 mAh battery;

Healthcare models include IEC60601-1 certified

power supply

OptionsAuto-detectable (PFC Compliant) 100-240VAC,

50-60Hz; ENERGY STAR certified; Energy Efficiency

Level VI certified; optional 2750 mAh battery;

Healthcare models include IEC60601-1 certified

power supply

Options

Please Note: specifications and options vary according to printer model and are subject to change without prior notice.
