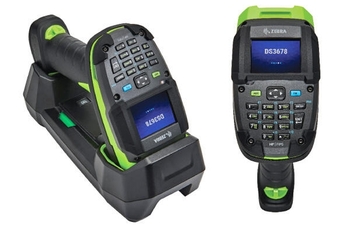

Zebra DS3678-KD Industrial Green High Performance 1D/2D Cordless Handheld Barcode Scanner Kit

Zebra DS3678-KD Industrial Green High Performance 1D/2D Cordless Handheld Barcode Scanner Kit

Warehouses, retailers and manufacturers face unrelenting pressure to deliver more — and to do it faster and more accurately. Rise to meet the challenge with the DS3600-KD Ultra-Rugged Scanner with Keypad and Color Display. Built for your toughest environments, the DS3600-KD is virtually indestructible, including an enhanced 10 ft./3 m drop spec to concrete.

The DS3600-KD features:

Faster pick-list processing
Flexible feedback modes
Capture OCR, photos and documents
Ultra-rugged cradle and charging contacts designed to last
Instantly connect to your Industrial Ethernet Network
Keep track of your scanners and prevent workflow interruptions
Easily capture label data for better inventory management


Physical Characteristics
Dimensions 7.5 in. H x 3.1 in. W x 5.6 in. D
19 cm H x 7.8 cm W x 14.3 cm D
Weight 18 oz./510 g (includes battery pack)
Input Voltage Range Host powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min.,
12.6 VDC max.
Color Industrial Green

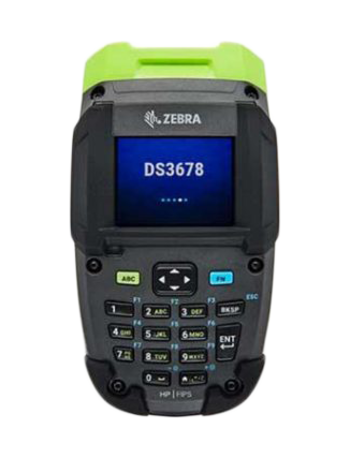

Display 2.0 in. QVGA (320 x 240) color display; Corning
Gorilla Glass
Backlight LED backlit display
Keypad Backlit 19-key alpha-numeric, with blue and green
shift-key functions
Ambient Light Sensor Automatically adjusts display and keypad
backlight brightness
Supported Host
USB, RS232, Keyboard Wedge
Industrial Ethernet: EtherNet/IP, Profinet,
Modbus TCP and Std TCP/IP
Battery PowerPrecision+ 3100 mAh Li-Ion rechargeable
User Indicators Direct decode indicator; LEDs; beeper; vibration
Performance Characteristics
Scans per Full Charge 60,000+
Illumination Two (2) warm white light LEDs
Aimer 655 nm laser
Imager Field
of View
Horizontal: 31°, Vertical: 23°
Image Sensor 1,280 x 960 pixels
Min. Print Contrast 15% minimum reflective difference
Skew/Pitch Roll
+/- 60°; +/- 60°; 0-360°
Decode Capabilities3
1D Code 39, Code 128, Code 93, Codabar/NW7, Code
11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5,
GS1 DataBar, Base 32 (Italian Pharma)
2D PDF417, Micro PDF417, Composite Codes, TLC-39,
Aztec, DataMatrix, MaxiCode, QR Code, Micro QR,
Chinese Sensible (Han Xin), Postal Codes
OCR OCR-A/B, MICR-E13B, US Currency Serial Number
IUID Support Supports IUID parsing, the ability to read and
separate IUID fields per application requirements
User Environment
Operating Temperature -4° F to 122° F/-20° C to 50° C
Storage Temperature -40° F to 158° F/-40° C to 70° C
Humidity 5% to 95% RH, non-condensing
Drop Specification Withstands multiple 10.0 ft./3.0 m drops to
concrete at room temperature
Withstands multiple 8.0 ft./2.4 m drops to concrete
at -4° F to 122° F/-20° C to 50° C
Tumble Specification 7500 3.3 ft./1.0 m tumbles
Environmental Sealing Scanner: IP65 and IP68 per applicable IEC sealing
FLB cradle: IP65
Electrostatic Discharge
Per EN61000-4-2, ±25 KV air discharge, ±10 KV
direct discharge, ±10 KV indirect discharge
Ambient Light
0 to 10,037 Foot Candles/0 to 108,000 Lux
(direct sunlight)
Wireless Connectivity
Bluetooth Radio Bluetooth Class 1, Version 4.0 (LE), serial port (SPP)
Data Rate 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
1 Mbit/s (0.27 Mbit/s) for Low Energy
Radio Range Direct line of sight in open air: Class 1: Minimum
300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)
Decode Ranges (Typical)4
Symbology/Resolution Near/Far
Code 128: 5 mil 6.0-14.0 in./15.2-35.6 cm
Code 128: 20 mil 5.0-45.0 in./12.7-114.3 cm
Code 128: 40 mil 2.8-80 in./7.1-203.2 cm
Datamatrix: 7.5 mil 7.0-11.0 in./17.8-27.9 cm
Datamatrix: 10.0 mil 6.0-15.0 in./15.2-38.1 cm
Environmental RoHS EN 50581: 2012
Electrical Safety EU Safety: EN 60950-1: 2006 + A11: 2009 + A1:
2010 + A12: 2011 + AC 2011 + A2: 2013; International
Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013
US/Canada Safety: UL 60950-1, second edition,
CAN/CSA-C22.2 No. 60950-1-07
Laser/LED Safety International LED Safety: IEC 62471: 2006 (Ed.1.0);
EN 62471: 2008 (LED); UL, VDE and CU recognized
laser component
EMI/RFI IT Emissions: EN 55022: 2010/AC: 2011 (Class B);
IT Immunity: EN 55024: 2010;
Heavy Industrial: EN 61000-6-2: 2005/AC:2005;
Harmonic Current Emissions: EN 61000-3-2: 2006
+ A1: 2009 + A2: 2009 (Class B);
Voltage Fluctuation and Flicker:
EN 61000-3-3: 2013;
Medical Electrical Equipment: EN 60601-1-2: 2007/
AC: 2010, IEC 60601-1-2: 2007 (Modified);
Radio Frequency Devices: 47 CFR Part 15, Subpart
B, Class B
Digital Apparatus: ICES-003 Issue 5, Class B

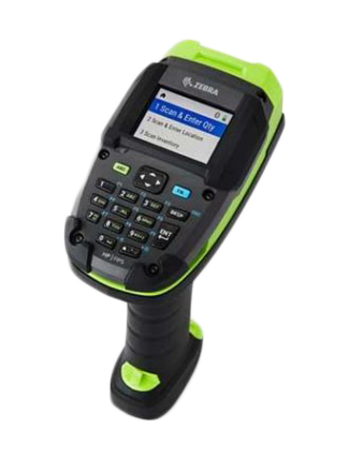

Pre-built Applications
Scan and Enter
Scan an item, then key in the quantity
Scan and Enter
Scan an item, then key in the quantity and location
Inventory Scan Key in data after scans while roaming from the host
Match Scan Verify that barcodes listed on the outside of a
container match the barcodes on the items inside
Image Viewer Preview a captured image before sending it to
the host
Markets and
Warehouse and
• Pick/Pack
• Work-in-Process
• Cross-docking
• Inventory tracking
• Asset management
• Shipping and
• Track and trace
• Parts replenishment
• Work-in-Process
• Inventory tracking
• Pick/Pack
• Asset management
• Shipping and
• Track and trace
• Inventory tracking
• Point of sale
zebra technologies 3
ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corp., registered in many jurisdictions worldwide. All other trademarks
are the property of their respective owners. ©2021 Zebra Technologies Corp. and/or its affiliates. 04/22/2021
NA and Corporate Headquarters
+1 800 423 0442
Asia-Pacific Headquarters
+65 6858 0722
EMEA Headquarters
Latin America Headquarters
+1 847 955 2283
Specifications (continued)
Utilities and Management
123Scan Programs scanner parameters, upgrades firmware,
displays scanned barcode data, scanning statistics,
battery health, asset data and prints reports.
Scanner SDK Generates a fully-featured scanner application,
including documentation, drivers, test utilities
and sample source code. www.zebra.com/
Scanner Management
Service (SMS)
Remotely manages your Zebra scanner and queries
its asset information. www.zebra.com/sms
Network Connect Seamlessly connects 3600 Series scanners
directly to your Industrial Ethernet network without
any third party conversion equipment. For more
information, visit www.zebra.com/NetworkConnect
Subject to the terms of Zebra’s hardware warranty statement, the DS3600-KD
is warranted against defects in workmanship and materials for a period of:
Scanner and Cradle: thirty-six (36) months, Battery twelve (12) months from the
date of shipment. For complete warranty statement, go to: https://www.zebra.
Recommended Services
Zebra OneCare Select; Zebra OneCare Essential
1. Heated scanner holder accessory recommended to reduce condensation on
the outside of scan window when moving in and out of freezers.
2. Customization will be available for select Zebra partners in Q3 2021.
3. Refer to Product Reference Guide for complete list of symbologies.
4. Printing resolution, contrast and ambient light dependent.
Specifications are subject to change without notice.
DataCapture DNA
DataCapture DNA is a suite of highly intelligent firmware, software, utilities and
apps exclusively engineered to add functionality and simplify the deployment
and management of Zebra scanners. For more information about DataCapture
DNA and its applications, please visit www.zebra.com/datacapturedna
