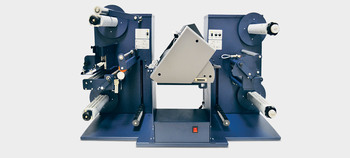

Virgo VRG22PL 220mm Desktop Label Digital Finishing System

Virgo is a compact desktop finishing system that unwinds, laminates labels for durability, digitally die cuts, removes excess label material around each die-cut shape, slit, and rewinds offering you everything to professionally cut and finish labels.

The system provides a very accurate label finishing solution using cutting plotter technology with reduced dimensions. This allows you to cut different types of materials and shapes on the fly without the added cost of dies.

The unit is also equipped with a cutter management tool that works in tandem with a camera forming an integrated optical black-mark registration system providing cutting speed optimisation and avoiding synchronisation issues.

The Virgo’s core features offer the user full flexibility, limitless variations in label design with a smooth workflow. The Virgo digital label finisher is truly the perfect ondemand short run label finishing solution for those using a digital color label printers and presses.

SOFTWARE:

  • Virgo software works together with a camera forming an integrated optical black-mark registration system.
  • With this software, the operator can import the cutting files created with CorelDraw which is also used to create the black marker.
  • The Virgo is equipped with a camera used to detect the black-mark printed on the media. This camera assist the software in detecting the black-mark created inside the cutting file.
  • This process tells the plotter when and where to start cutting the media.

SPECIFICATIONS:

Input / Output Roll Diameter 200mm (7.87”)

Minimum Web Width  100mm (3.94”)

Maximum Web Width  225mm (8.86”)

Maximum Cutting Width  200mm (7.87”)

Minimum Slitting Width  19mm (0.75”)

Minimum Label Length  10mm (0.39”)

Maximum Label Length  200mm (7.87”)

Lamination Module  YES

Number of Slitting Blades  up to 6

Maximum Media Thickness 0.25mm (10 mil)

Maximum Cutting Speed  600mm/s (24 in/s) in all directions

Roll Core Size   76mm (3”)

Agency Certifications  CE, FCC, RoHS

Warranty   One Year Parts and Labor

Usage Limitation may apply

The machine is connected to a computer using a USB cable; its dedicate software must be installed on a PC running on Windows 8 up;
those using exclusively Mac technology may install ‘Parallel’ compatibility software or opt to purchase a small notebook.

The software manages the file in Adobe Illustrator format created both by Mac and PC; it can also manage files created in CorelDraw.

The cut outline must be saved together with the black marks, whereas the rest of the graphic may stay on non-visible levels.
