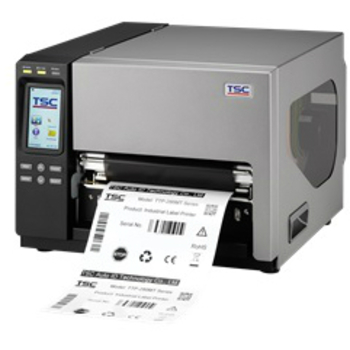

TSC TTP-286MT Thermal Transfer Barcode Printer

Code: 99-135A002-0004
TSC
$4899.40 (inc GST)
$4454.00 (exc GST)
Qty:
AUTOMATE YOUR BUSINESS PRINTING TODAY!

Stop handwriting labels now and maximise your production!


TTP-286MT Series can accommodate label widths up to 9.5 inches, with a maximum print width up to 8.64 inches at 300 dpi resolution and 8.5 inches at 203 dpi resolution. It also is designed to print wide-lateral bar codes without the need for image rotation.

Enhanced High Speed Performance, Color Touch Display

TTP-286MT Series features a new faster processor, and all the memory customers will need to print high quality labels at the fastest speeds.

High Speed Performance, More memory

The TTP-286MT Series features increased memory of 512 MB Flash and 256 MB SDRAM. Internal Ethernet, USB 2.0, USB host, parallel and serial interfaces come standard.

A Colorful Choice

The new TTP-286MT Series comes with a high-contrast 4.3” color touch LCD panel with 6 button control user friendly design for simple printer set up and job status.

Loaded with Standard Features

The TTP-286MT Series features a rigid, full die-cast aluminum frame designed to last in tough environments and supports a large 8.2 inch outer diameter label roll and up to 600 meter ribbon capacity for high volume printing. The TTP-286MT Series features a center-bias label handling mechanism that makes media loading and adjustment easy.

Because our printers our built to last, we back them with a standard two-year limited warranty.

Powerful TSPL-EZ™ Printer Programming Language

TTP-286MT Series features the TSPL-EZ™ printer-control language, a fully compatible set of standard industry emulations, including Line Mode, Eltron® and Zebra® languages and will work in many IT environments including Oracle, SAP, Unix, AS/400, Windows, Stand Alone, and many more.

Printer Specifications include:

Model TTP-286MT
Print Specification Resolution 8 dots/mm (203 DPI)
Max. print speed 152 mm (6")/second
Max. print width 216 mm (8.5")
Max. print length 11,430 mm (450")
Printing method Thermal Transfer & Direct Thermal
LCD/LED LCD/LED 16 bits Color, 480 x 272 pixels, with back lights, Resistive Touch Screen
Memory SDRAM 256 MB
Flash 512 MB
Extension SD Flash memory card reader for Flash memory expansion, up to 32 GB
Ribbon & Media Capacity Ribbon capacity 600 m long, Max. 90 mm OD, 1" core (ink coated outside)
Ribbon width 110 mm ~ 254 mm (4.3" ~ 10")
Media type Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound)
Media width 101.6 ~ 241.3 mm (4" ~ 9.5")
Media thickness 0.06 ~ 0.254 mm (2.36 ~ 10 mil)
Media core diameter 76.2 mm (3")
Media length 25.4 ~ 11,430 mm (1" ~ 450")
Media roll capacity 208.3 mm (8.2") OD
Interface Standard • USB 2.0
• RS-232
• Parallel
• Ethernet, 10/100 Mbps
• USB Host
Options • GPIO
Software Support Software support Oracle, WHQL 8.1, Windows, Linux, MAC X.10, Microsoft SQL Server, BarTender, Nice Label
Physical characteristics Dimension 440 mm (W) x 336 mm (H) x 514 mm (D)
17.32" (W) x 13.23" (H) x 20.24" (D)
Weight 23.7 kg
