Code: 99-039A003-0004
$420.75 (inc GST)
$382.50 (exc GST)

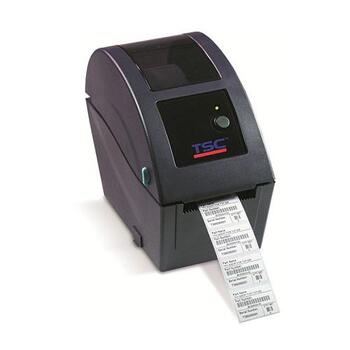

TSC TDP-225 Direct Thermal Barcode Printer
Stop handwriting labels now and maximise your barcode printing production!

Built with TSC durability, reliability, and commitment to innovation, the 2-inch-format TDP-225 series direct thermal printer features a compact design and high-performance engine that make it ideal for many healthcare, retail and asset tagging labeling applications.

The TDP-225 prints at 6 ips and is the first low-cost affordable compact 2-inch desktop printers to offer an optional LCD display for easy tracking of print job status. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into networks and an optional keyboard for printing labels in stand-alone or down-time situations. The TDP-324 is also available, featuring high resolution 300 dpi printing resolution and 4 ips print speed.

Designed with no losable parts, the compact TDP-225 series fits into tight spaces and supports a wide range of applications. It also features a user-friendly clamshell design that allows users to simply open the cover and drop labels into a spring-loaded 5-inch OD media bay. Top-of-form sensing by gap, black mark, or notch is standard, and the black mark sensor is completely adjustable from side to side.

With enhanced electronics, the TDP-225 series offers a 200 MHz processor, standard memory of 4 MB Flash, 8 MB SDRAM, and a microSD expansion slot that increases Flash storage up to 4 GB. The printer supports standard industry emulations, including the Eltron® and Zebra® languages.

The printers feature a small footprint and can be used ergonomically on a desk or mounted to a wall when desk space is at a premium. The printers feature an LCD screen with buttons and offers connectivity options such as USB 2.0, Ethernet, and USB Host for use with a keyboard or scanner.


  • Jewelry Tags
  • Retail Point-Of-Sale
  • Shelf Labeling
  • Product Marking
  • Healthcare Specimen Labeling
  • Healthcare Patient Tracking
  • Inventory & Asset Management
  • Small Office or Home Office Mailing
  • Shipping
  • File-Folder Labeling

Printer Specifications Include:

203 dpi (8 dots/mm)

Print Method
Direct thermal only

LCD with buttons

Hardwire Connectivity
Serial RS-232
USB Host
Enterprise Printer Management
TSC Console


Max. Print Speed
Up to 6 ips (152 mm/s)

Max. Print Width
2.13" (54 mm)

Max. Print Length
90" (2,286 mm)


4 MB

Expandable Flash
microSD card reader; up to 4 GB

RS-232 (for standalone keyboard), USB Host (for PC keyboard)

Optional Cutter
Guillotine cutter (full-cut or partial-cut)

Media Specifications
Internal Label Capacity
5" (127 mm) OD

Max. Media Width
0.59" - 2.36" (15 - 60 mm)

Media Type
Continuous; Die-Cut; Black Mark; Fan-Fold; Notched; Wristband (Outside Wound)

Media Core Diameter
1" - 1.5" (25.4 - 38 mm)

Clamshell with double-walled plastic

Programming Languages
