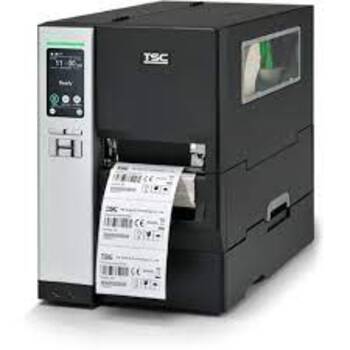

TSC MH241P Thermal Transfer Printer
Download pdf Brochure (1674 KB)TSC MH241P Industrial Barcode Label Printer
The MH241 Series is TSC's mainstream industrial barcode label printer built upon the legacy of the MH240 Series. It brings new features to those looking for solutions to address evolving business challenges from growing production line demands to increasing operational complexities. The MH240 Series features premium printhead technology, fast processor, and all the memory customers will need to print high-quality labels delivered at the fastest speeds.
FEATURES:
Includes Full Roll Internal Rewinder
The MH241P is equipped with an Internal Rewinder which allows ful label rolls to be loaded.
Sophisticated TSC Sense Care
TSC Sense Care can auto scan and detect printhead bad dots during the printing process and support both top and bottom black mark sensors for switching easily.
Dynamic Remote Printer Management
SOTI Connect and TSC Console provide enterprise printer management to manage multiple tasks, reduce maintenance costs and avoid downtime of business-critical devices.
Rugged Design
Rugged design with die-casting structure ensures stable media path for outstanding print quality and accuracy. The powerful peel-off capability fits various label sizes.
Because our printers our built to last, we back them with a standard, two-year limited warranty.
• Easy to operate with the new GUI design on display
• 4.3" color touch LCD with 6-button control for standard model or 4.3" color touch LCD panel with 6-button control for advanced model
• Small label peel off- Up to 0.5 inch length (MH241/MH341/MH641 and MH241T/MH341T/MH641T)
• USB host interface for stand-alone applications
• Available in 203 dpi, 300 dpi and 600 dpi resolutions, firmware automatically detects printhead resolution and switches accordingly
• 600 meter ribbon supply
• microSD Flash memory expansion up to 32 GB
• Ribbon capacity and label near end monitor widget
• TSPL-EZD firmware for plug-n-play ease
• Options include: peel-off kit, GPIO, internal Bluetooth module, slot-in 802.11 a/b/g/n wireless module kit, regular cutter, heavy duty guillotine cutter and care label cutter
• ENERGY STAR® qualified
- Warehouse & Logistics
- Packing
- Order Fulfilment
- Shipping/Receiving
- Inventory Management
- Manufacturing
- Work In Process
- Product Marking
- Compliance Labeling
- Retail
- Product Label
Printer Specifications Include:
| Model | MH241P | |
| Print Specification | Resolution | 8 dots/mm (203 DPI) |
| Max. print speed | 356 mm (14”)/second | |
| Max. print width | 104 mm (4.09") | |
| Max. print length | 25,400 mm (1000") | |
| Printing method | Thermal Transfer & Direct Thermal | |
| LCD/LED | LCD/LED 4.3" | Colour Touch Screen |
| Memory | SDRAM | 256 MB |
| Flash | 512 MB | |
| Ribbon & Media Capacity | Ribbon capacity | 600 m long, max. O.D. 90 mm, 1“ core (ink coated outside or inside) |
| Ribbon width | 25.4 mm ~ 114.3 mm (1” ~ 4.5”) | |
| Media type | Continuous, die-cut, black mark, fan-fold, notched (outside wound) | |
| Media width | 20 ~ 114 mm (0.79" ~ 4.5") | |
| Media thickness | 0.06 ~ 0.28 mm (2.36 ~ 11 mil) | |
| Media core diameter | 25.4 mm ~ 76.2 mm (1” ~ 3”) | |
| Media length | 5 ~ 24,500 mm (0.2" ~ 1000") | |
| Media roll capacity | 203.2 mm (8“) O.D. | |
| Interface | Standard | • USB 2.0 |
| Options |
• GPIO + Parallel • internal Bluetooth • 802.11 a/b/g/n Wi-Fi |
|
| Software Support | Software support | Windows, Oracle, Microsoft SQL Server, BarTender, Nice Label |
| Physical characteristics | Dimension | 276 mm (W) x 412 mm (H) x 502 mm (D) 10.87" (W) x 16.22" (H) x 19.76" (D) |
| Weight | 18.93 kg (34.39 lbs) |
