TSC MH241 Thermal Transfer Printer

Code: MH241-A001-0004
$2233.55 (inc GST)
$2030.50 (exc GST)

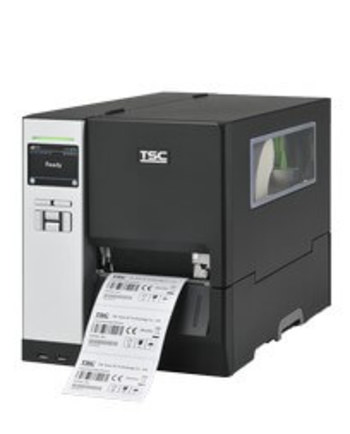

TSC MH241 Industrial Barcode Label Printer

The TSC MH241 Series is a mainstream, industrial barcode label printer. The MH241 Series features premium printhead technology, fast processor, and all the memory customers will need to print high quality labels delivered at the fastest speeds. The printer incorporates a robust die-cast aluminum print mechanism engine that is ideal for light industrial duty printing.

Enhanced Print Quality

The MH241 Series features the best print quality TSC has ever offered thanks to the latest printhead technology combined with faster processors and upgraded firmware. We call our enhanced print quality "Thermal Smart Control" which tracks and precisely calculates the duration that each pixel needs to be heated to provide accurate, crisp and clear labels every time, whether you are printing one label at a time or thousands of labels in a batch.

Colorful Display

The new MH241 Series comes with a high-contrast 3.5" colour LCD panel with 6 button control user friendly design for simple printer set up and job status. Common tasks such as label calibration are one touch away. Menus can be customized to bring common tasks to the front screen, making the MH241 Series the easiest to operate printer.

Loaded with Standard Features
The MH241 Series features a rigid, full die-cast aluminum frame designed to last in tough environments and supports a large 8.2 inch outer diameter label roll and up to 600 meter ribbon capacity for high volume printing.

Because our printers our built to last, we back them with a standard, two-year limited warranty.
"Thermal Smart Control" print technology produces clean, high quality barcodes
• Up to 356 mm (14") per sec. print speed
• Easy to operate with the new GUI design on display
• 3.5" color LCD with 6-button control for standard model or 4.3" color touch LCD panel with 6-button control for advanced model
• Small label peel off- Up to 0.5 inch length (MH241/MH341/MH641 and MH241T/MH341T/MH641T)
• USB host interface for stand-alone applications
• Available in 203 dpi, 300 dpi and 600 dpi resolutions, firmware automatically detects printhead resolution and switches accordingly
• 600 meter ribbon supply
• microSD Flash memory expansion up to 32 GB
• Ribbon capacity and label near end monitor widget
• TSPL-EZD firmware for plug-n-play ease
• Options include: internal rewinding kit, peel-off kit, GPIO, internal Bluetooth module, slot-in 802.11 a/b/g/n wireless module kit, regular cutter, heavy duty guillotine cutter and care label cutter
• ENERGY STAR® qualified
  • Warehouse & Logistics
  • Packing
  • Order Fulfilment
  • Shipping/Receiving
  • Inventory Management
  • Manufacturing
  • Work In Process
  • Product Marking
  • Compliance Labeling
  • Retail
  • Product Label

Printer Specifications Include:

Model MH241
Print Specification Resolution 8 dots/mm (203 DPI)
Max. print speed 356 mm (14”)/second
Max. print width 104 mm (4.09")
Max. print length 25,400 mm (1000")
Printing method Thermal Transfer & Direct Thermal
LCD/LED LCD/LED Colour Screen
Memory SDRAM 256 MB
Flash 512 MB
Ribbon & Media Capacity Ribbon capacity 600 m long, max. O.D. 90 mm, 1“ core (ink coated outside or inside)
Ribbon width 25.4 mm ~ 114.3 mm (1” ~ 4.5”)
Media type Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width 20 ~ 114 mm (0.79" ~ 4.5")
Media thickness 0.06 ~ 0.28 mm (2.36 ~ 11 mil)
Media core diameter 25.4 mm ~ 76.2 mm (1” ~ 3”)
Media length 5 ~ 24,500 mm (0.2" ~ 1000")
Media roll capacity 203.2 mm (8“) O.D.
Interface Standard • USB 2.0
Options • GPIO + Parallel
• internal Bluetooth
• 802.11 a/b/g/n Wi-Fi
Software Support Software support Windows, Oracle, Microsoft SQL Server, BarTender, Nice Label
Physical characteristics Dimension 276 mm (W) x 326 mm (H) x 502 mm (D) 10.87" (W) x 12.83" (H) x 19.76" (D)
Weight 15.60 kg (34.39 lbs)
