TSC DA320 Barcode Label Printer

Code: 99-158A016-2104
TSC
$588.50 (inc GST)
$535.00 (exc GST)
Qty:

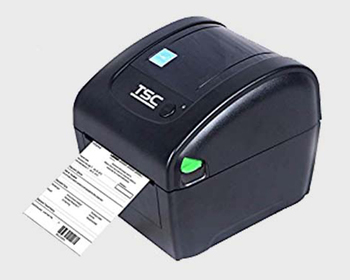

TSC DA320 Direct Thermal Barcode Printer

The DA320 Series of direct thermal desktop printers are ideal for a wide variety of applications including product marking, point of sale, retail, small office, shipping labels, and other labelling and tag applications at a very competitive price.

The DA320 Series is a perfect combination of affordability with a durable and reliable design. The DA320 series offers both 203 and 300 dots per inch print resolution with printing speeds up to a fast 6 inches per second. The large 60 watt power supply produces high quality printed labels, even at its fastest print speeds.

Affordable

The low cost DA220 and DA320 models are priced right and have the features you need for most basic label printing needs using a USB 2.0, Wifi or optional Bluetooth interface.

Wireless and Hardwire Communications

Need more communications power? The DA220 and DA320 models have more memory and support every communications option you could need including Serial RS-232, Ethernet, USB host, internal 802.11 a/b/g/n wireless, or internal Bluetooth.

Emulations and More

The DA220/DA320 has plenty of memory with 128 MB Flash & 64 MB DRAM that can be used for easy storage of fonts, international character sets and graphics, and it supports, "right out of the box," a fully compatible set of standard industry emulations, including Line Mode, Eltron®, Zebra® and Datamax languages, making it easy to replace old installed hardware.

Features:

  • High quality double-walled clamshell design
  • 6 inches per second print speed
  • 64 MB SDRAM and 128 MB Flash memory (DA220/DA320)
  • Easy media loading
  • USB 2.0 (High speed mode)
  • TSPL-EZ firmware emulates Eltron® and Zebra® languages out of the box
  • Mac Compatible
  • Bluetooth 4.0
  • 802.11 a/b/g/n (DA220/DA320)
  • ENERGY STAR® qualified
Perfect for the Following Uses:
  • Business/Office
  • Product Marking
  • Compliance Labeling
  • Asset Tracking
  • Document Management
  • Shelf-Labeling
  • Shipping/Receiving
  • Specimen Labeling
  • Inventory Control
  • Patient Tracking

TSC DA320 Direct Thermal Barcode Printer



Resolution

8 dots/mm (300 DPI)







Max. print speed

152.4 mm (6")/second







Max. print width

108 mm (4.25")







Max. print length

2,794 mm (110")







Printing method

Direct Thermal







LED

LED

1 LED (3 colors: green, amber & red)







Memory

SDRAM

64 MB







Flash

128 MB







Extension

N/A







Ribbon & Media Capacity

Ribbon capacity

N/A







Ribbon width

N/A







Media type

Continuous, black mark, fan-fold, notched (outside wound)







Media width

19 ~ 114 mm (0.7" ~ 4.5")







Media thickness

0.055 ~ 0.19 mm (2.16 ~ 7.48 mil)







Media core diameter

25.4 ~ 38 mm (1" ~ 1.5")







Media length

10 ~ 25,400 mm (0.39" ~ 1100")







Media roll capacity

127 mm (5") OD







Interface

Standard

• USB 2.0 (High speed mode)

• Ethernet

• Serial RS-232

• USB Host







Options

• Internal Bluetooth (factory option)

• Wi-Fi (factory option)







Software Support

Software support

Oracle, WHQL 8.1, MFi, Windows, Linux, MAC X.10, Microsoft SQL Server, BarTender, Nice Label







Physical characteristics

Dimension

172 mm (W) x 165 mm (H) x 195 mm (D)
6.77" (W) x 6.50" (H) x 7.68" (D)







Weight

1.5 kg (3.31 lbs)
