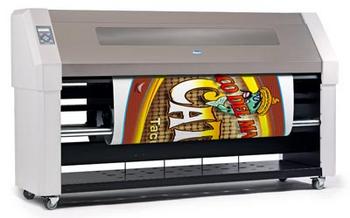

Summa DC4 Vinyl Sign Printer

Code: 9200092PRINTERS



Summa DC4 Vinyl Sign Printer



Summa DC4 takes automated sign production to a new level. It prints outdoor-durable vinyl graphics that last up to 5 years without lamination*. Plus precision die-cutting is built-in along with auto-calibration features for even greater automation.

• 127.5 centimetre print-cut system.
• Outdoor durable without lamination.
• Process and spot colour printing.
• Eco-friendly, odourless, resin inks.
• OptiPrint media cleaning system







Go to: Key Features | Specifications

KEY FEATURES ^top

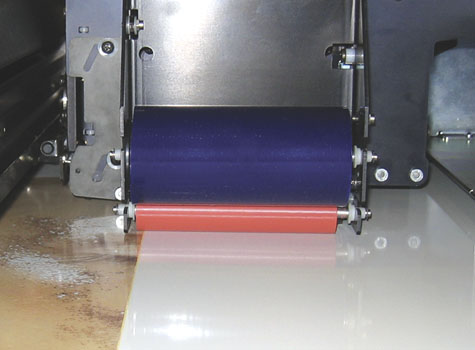

OptiPrint™ vinyl cleaning roller

OptiPrint™ is our revolutionary media pre-cleaning system. It removes the dust and debris that can cause image flaws in thermal transfer printing. But unlike any other vinyl pre-cleaning methods, OptiPrint cleans your vinyl media immediately prior to laying down the first colour pass. That means there's no time for additional airborne particles to settle on your media prior to printing. So you get Optimal Printing that no other thermal transfer printer can match.

OptiPrint Roller



Storage for up to eight auto-changing Smart Ribbon™ cassetes

Summa pioneered self-changing thermal transfer ribbon technology. So it's little wonder that our sixth-generation printer, Summa DC4, takes ribbon design to new levels of efficiency and automation:


  • High-capacity - each ribbon prints over 32 square metres
  • Fast-loading - just drop-in a new roll
  • Universal cassettes - the easy-loading cassettes hold any colour ribbon
  • Intelligent - SmartRibbon™ technology auto-recognises your ribbon colour, no matter where it's placed in the printer

Best of all, you can load up to 8 cassettes for long unattended print runs that combine both process and spot colour printing.

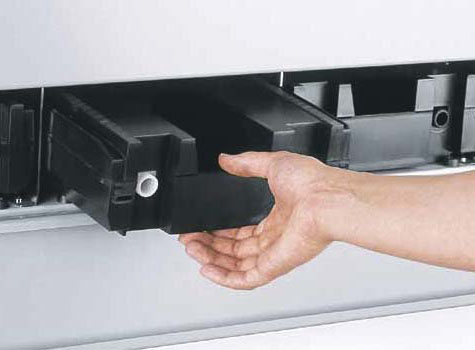

Smart Ribbon Cassette

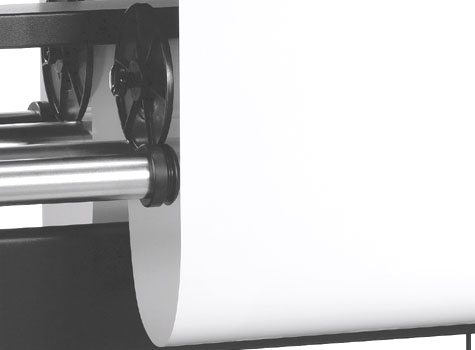

Power Take-Up Roller

When you own the world's most automated thermal transfer printer, it's good to know your Summa DC4 has everything you need for long unattended printing. For short runs, the integrated media basket keeps your vinyl graphics from coming in contact with potentially dirty floors. Or when printing long runs, the power take-up rollers can easily handle your longest print runs.

Power Take-Up






SPECIFICATIES ^top

PRINT SPECIFICATIONS
PRINTHEAD Thermal transfer
INK TYPES Resin ribbons, in process or spot colours (outdoor durable);
Metallic ribbons, in gold or silver (indoor use)
IMAGE WIDTH 127.5 cm (50.2 in.) maximum
RESOLUTION Max. 24 x 12 dpmm (609 x 304 dpi)
PRINT SPEED
Standard Mode :  8.7 m2/hour (93 F2/hour) - Spot
   3.2 m2/hour (34 F2/hour) - Process CMY
High resolution :  6.2 m2/hour (67 F2/hour) - Spot
   2.3 m2/hour (25 F2/hour) - Process CMY
Double density :  5.4 m2/hour (58 F2/hour) - Spot
   2.0 m2/hour (22 F2/hour) - Process CMY
CUT SPECIFICATIONS
CUT TYPE Drag-knife
BLADE TYPE 36° Summa D-Series
CUT WIDTH 127.5 cm (50.2 in.) maximum
CUT SPEED 600 mm/sec (24 in./sec)
CUT FORCE 0-400 grams in increments of 5 grams
MEDIA SPECIFICATIONS
MEDIA WIDTH 61, 76 and 137cm (24, 30 and 54 in.)
MEDIA DRIVE Friction-feed with active steering
MEDIA TRACKING OptiTrac™ laser-guided tracking and advance
MEDIA LOADING Auto load and alignment built-in
MEDIA TAKE-UP Power take-up rollers;
Media collection basket
SOFTWARE SPECIFICATIONS
RIP SOFTWARE ColorControl™ RIP + Cut (included)
PLATFORM SUPPORT ColorControl: Windows 98/2000/Me/XP
FILE SUPPORT ColorControl: EPS, PDF, PS files from Mac or Windows
TECHNICAL SPECIFICATIONS
CONNECTIVITY USB 1.1 or Centronics Parallel
MEMORY RAM: 64 MB;
Mass Storage: 2 GB hard disk drive
ELECTRICAL Connection: standard wall outlet;
Requirement: 100-240V 50Hz 350W
ENVIRONMENT Temperature: 15° to 32° C (60° to 90° F);
Humidity: 35 to 80 percent, non-condensing
DIMENSION & WEIGHT Equipment:
230 x 63 x 130 cm ( 90.6 x 24.8 x 51.2 in. );
250 kg (550 Lbs.)
Shipping:
256 x 88 x 160 cm ( 100.8 x 35 x 63 in.);
380 kg (836 Lbs.)
STANDARD ACCESSORIES Summa ColorControl RIP + Cut 7.0
Summa Printer Control
Operations manual
Universal quick-load ribbon cassettes (8)
D-Series blade holder
36° D-Series blades (2)
Media roll-end flanges (4)
USB cable
Power cable
OptiPrint roller refill (1)
1.365 x 45.7m ( 53.75" x 50 yd.) media: 2 mil premium 3M®
Cyan, Magenta, Yellow, Black ribbons (1 ea.)

*Lamination is recommended for images that will be exposed to extreme climates,
heavy abrasives and/or chemical solvents.^ top
