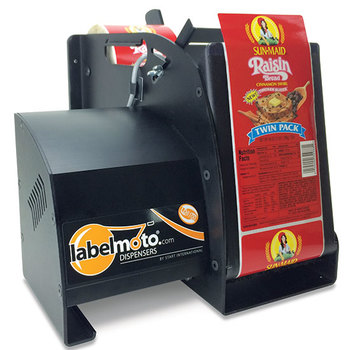

START International LD8100 Semi-Automatic Label Dispenser

Code: 9300002PRINTERS
START International
$1483.90 (inc GST)
$1349.00 (exc GST)
Qty:

START International LD8100 Semi-Automatic Label Dispenser

The START International LD8100 high-speed electric label dispenser updates the LD5500. It dispenses long packaging-type labels and die-cut parts made from paper, polyester, vinyl, acetate, foil, and other materials. The LD8100 has a photosensor, which ensures that the unit peels, dispenses, and advances accurately and consistently. The liner scrap is automatically rewound for a clean working environment.

No tools are required to adjust the dispenser for different label sizes. It also has an adjustable strip plate for hard-to-release labels. The dispenser has a high-torque motor to handle the weight of large-diameter label rolls, with a maximum outside roll diameter of 12"/305 mm. The dispenser housing is made from anodized aluminum for durability. The LD8100 label dispenser operates on 100/120 VDC at 50/60 Hz. This label dispenser is made in the U.S. It is suitable for industrial uses such as manufacturing, assembly, and packaging.

Features:

Electric label dispenser for long, wide packaging-type labels made of paper, vinyl, acetate, polyester, foil, and other materials

  • Ideal for long, packaging-type labels
  • Automatically peels and advances labels
  • Photosensor accuracy and reliability
  • All-metal construction
  • High-torque motor for heavy rolls of labels
  • Will dispense labels from .25" to 5" (6 to 127mm) in width
  • Will dispense labels from .5" to 12" (13 to 305mm) in length
  • Made in the U.S.A.



Product Specifications

Model #LD8100

Liner Capacity Width.25 to 5

Label Length .5 to 12

Roll Capacity 12

Feed Speed* 7.8" per Second

Dimensions 14.4”(L) x 11.9”(W) x 10.4”(H) 36.6(L) x 30.2(W) x 27.7cm(H)

Weight 4.0 KG

Electrical Requirements -100/120V 50/60Hz, <1 amp (230V 50/60Hz available)
