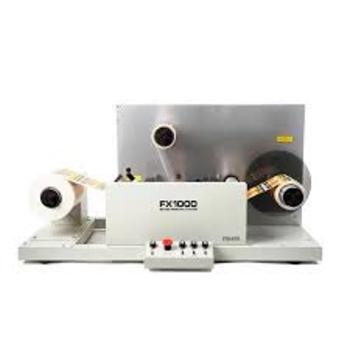

Primera FX1000 Matrix Removal System for use with Primera CX1000

Code: FX1000SINGLEDEMO
Primera
$6594.50 (inc GST)
$5995.00 (exc GST)
Qty:

Primera FX1000 Matrix Removal System for use with Primera CX1000



DEMO CLEARANCE MODEL



Remove waste matrix with ease:

The FX1000 Matrix Remover and Slitter is the perfect partner for the Primera CX1000 digital label press. This unit makes it easy to remove the waste label matrix from your printed rolls of pre die-cut labels. It also slits the liner and rewinds your printed labels into multiple finished rolls that are perfect every time.

Finished rolls are tightly wound and ready for use on cores for use on label dispensers and applicators.
















  • Input roll max. diameter: 12” (305mm)
  • Output roll max. diameter: 12” (305mm)
  • Minimum web width: 6” (152mm)
  • Maximum web width: 8.5” (216mm)
  • Throughput speed: Up to 4” (101 mm) per second or 20 FPM (6.09 m per minute)
  • Controls: Individual on/off and speed control for each mandrel; emergency stop switch
  • Number of slitting blades: 1 to 7
  • Operating Environment Optimal Operating Environment: 40% - 55% relative humidity and 68-74 degrees Fahrenheit (20-23 °C)
  • Dimensions: 49.5”W x 26.5”D x 28.5”H (125.75 cm W x 57.3 cm D x 72.4 cm H)
  • Weight (estimated): 220 lbs. (100 kg)
  • Power requirements: Internal 300 watt power supply. Input 100-240VAC, output 24v, 13 amp.
  • Agency certifications: UL, UL-C, CE, FCC Class A
