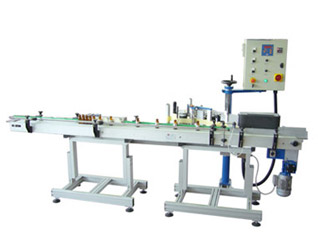

PMR label applicator - M 3005 for round with spacing cochlea

Code: PMRM3005cochlea

PMR label applicator - M3005 for round with spacing cochlea



PMR M 3005 for round with spacing cochlea label applicator is an automatic labelling machine specially designed for the application of labels to products with round cochlea.



With this unit you will obtain efficient, accurate and precise labelling performance. This Labelling system is composed by a conveyor belt and a labelling head.



Its Power IP 55 with filter ventilation, offers the ability to set parameters such as late start, management of the pre-order labels signal among others signals.



The PMR M 3005 round with spacing cochlea labeller includes a resistant stainless steel base containing the electrical panel of the machine, which makes it ideal for industrial environments.



With this labelling system, products loading/unloading can be done manually or directly from an existing production line.



The PMR M 3005 Classic and Plus models, incorporate units for overprinting dry or hot transfer.



This unit is the ideal partner for those businesses that want to achieve a higher level of efficiency in their production process.





PMR label applicator - M3005 for round with spacing cochlea benefits

  • Ideal for the application of labels on products with round cochlea.
  • Efficient, accurate and precise labelling performance.
  • Composed by a conveyor belt and a labelling head.
  • Includes a resistant stainless steel base containing the electrical panel of the machine, which makes it ideal for industrial environments.
  • Loading/unloading can be done manually or directly from an existing production line.


Available models

  • Economy
  • Classic
  • Classic Digit
  • Plus
  • Plus Digit

Accessories

  • Non motorized roller.
  • Upper roller width 40 length 500 or x 900.
  • Spacing wheel.
  • Orbital aligner.
  • Spiral spacing wheel.
  • Product stop.
  • 3 rolls closing system with a special reader for precise labelling position.

Kind of products

  • Round.

Conveyor Motor

  •  0, 37 KW AC.

Motor

  •  Stepper Motor.

Product Size

  • * min. flat mm 20x20 | max. flat mm 120x300.

Speed

  • Economy model: 15m/min.
  • Classic models: 30m/min.
  • Plus models: 60m/min.

Label Reel Size*

  • Economy model: 250mm external max - 40mm (76mm ar) internal min.
  • Classic and Plus models: 350mm external max - 40mm (76mm ar) internal min.

Power

  •  230 V AC.

Compressed Air

  • Economy model: No.
  • Classic and Plus models: Yes.

Pneumatic pressure

  • Classic and Plus models: 4-8 bar.

Dimensions

  •  Length mm 2000, width mm 1700, height mm 1600.

*Other sizes on request.
