LP-812W Printer

Code: LP-812GHSPRINTER

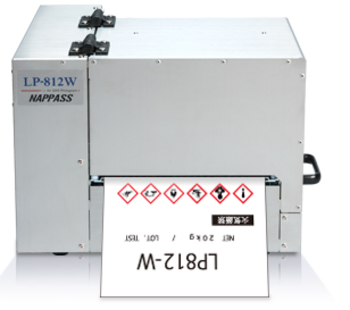

LP-812W LABEL PRINTER

Label Power's LP-812W high-speed 2-color thermal-transfer label printer targeted at GHS compliant applications. The printer, which operates at a speed of 8in/second, is designed to print on weather-resistant synthetic papers.

The LP-812W includes Ribbon Save feature on both printheads. What this means is that when there is a space on the label or media that is 30mm or over the ribbon will stop and the paper will continue to advance. This feature can save thousands of dollars in ribbons every year for many users.

LP-812W comes with USB2.0 connection and onboard LAN for ethernet.

PRINTER

Model	LP-812W
Printing type	Thermal Transfer method, 2-colors
Type of thermal head	Edge head
Printing density	305dpi x 305dpi 305dpi x 61 Odpi (4inches/sec)
Printing speed	4inches(101.6mm)/sec 6inches(152.4mm)/sec 8inches(203.2mm)/sec
Maximum printable width	216.Smm
Maximum printable length	490mm
Printing color	(Standard)-Black/Red (Others)-Blue/Green/White
The number of thermal heads/Printing method(OS)	2heads/Printing by using the Windows driver (7/8(32/64bit>)
Paper feeder sensor	Transmissive sensor /Reflective sensor
The mechanism of labeler	The labeler can connect directly with the vertically operatable labeler
Outside interface	PC : USB2.0/LAN (onboard) Labeler : Serial
Keyboard	FEED KEY (One sheet feed) I STOP KEY (Pause) I RESTART KEY (Error cancellation)
Ink ribbon saving function	Capable (Under the condition of the no printing areas more than 30mm)
Thermal head disconnection check function	Available from printing condition setting tool
LED display	3 styles (POWER I ONLINE I ERROR)
Operating conditions	Temperature: 5-40°C(*special condition required under 36-40°C) Humidity: 30-80%RH Power AC100V-240VA 50/60Hz
Size	420mm(Width) x 395mm(Depth) x 315mm(Height) = Exclude label holder unit
Weight	26kg = Exclude label holder unit)
Paper type	Label I Tag roll (synthetic paper I general paper capable)
Paper width	100mm - 220mm
Paper thickness	0.13mm - 0.18mm
Label length	50mm - 600mm
Label length detection	Label gap, the back marking, without sensor (size measuring)
Maximum diameter of paper roll	210mm
Maximum length of paper roll	200m (depends on paper thickness)
Winding direction	Revolute (recommended) / involute
Label holder shaft	Centering adjuster
Ink ribbon length	300mm (standard)
Bundled software	Printing condition setting tool
