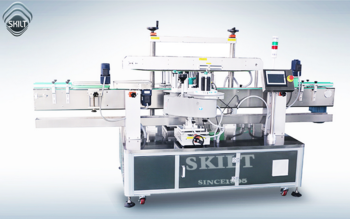

Label Power DLM-ALS Two Sides Labelling Machine

Code: 2031164PRINTERS

Label Power DLM-ALS Two Sides Labelling Machine

The model Label Power DLM-ALS Two Sides Labelling Machine applicator is specially suited for applying labels to two sides of a product, Labeling machine labeling Engine use German brand, check label size directly, with five years guarantee period.





Label Power DLM-ALS Two Sides Labelling Machine Characteristics:

  • Control system: SIEMENS PLC control system, with high stable operation and extremely low failure rate;
  • Operation system: SIEMENS touch screen, with Chinese and English language, rich with help function and fault display function,easy operation;
  • Check system: German LEUZE check label sensor, automatic check label position, stable and convenient don’t have much higher requirement for the worker skill;
  • Send label system: American AB servo motor control system, stable with high speed;
  • Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
  • Machine Material: The machine and spare parts all use material S304 stainless steel and Anodized senior aluminium alloy,with high corrosion resistance and never rust;
  • Low voltage circuit all use the France Schneider brand.
Model DLM-ALS104
Driving Mode German Avery 104
Yield?pcs/min? 20-200
Operating direction Left or Right
Conveyor Speed?m/min? ≤40
Labeling Accuracy ±1.0 mm
Label material Adhesive sticker, opaque or transparent label
The inner diameter of label roll 76 mm
The outer diameter of label roll 350 mm(max)
The suitable size of label Width 15-110 mm length 15-300 mm
The suitable size of labeling objects Can customized
Printer use air 5kg/cm ²
Voltage (In China) AC220V 50/60HZ Single phase
(Can customized as client need)
