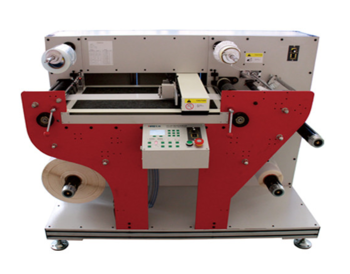

Label Power Digicut 330
$35995.00 (exc GST)
LP Digicut 330 Professional Label Diecutter Demo Clearance Model
By using this digital label die-cutter, there is no need to make a cutting mold, so there is no production delay from mold preparation and shipment. Most importantly, it not only reduces cost and time, but also increases work efficiency.
The unique servo digital cutting technology can use 4 blades at the same time for die-cutting labels, compared with other single blade , reducing production time and costs.
High Precision Rectify Deviation System
Utilize double mark tracking sensors system, guarantee media feeding in regularly. You can choose internal edge and internal line
It has cold laminating function, label will be bright and perfect.
Digital Die-cutting System
VD320 Digital label die-cutter utilize Servo motor driving, use tungsten steel blade, the high-speed get to 2 meter per second.
Patent protected design of cutting heads, cutting thickness get to 1 mm, more fast, more reliable
Precision Slitting System
Utilize rotary slitting mode, can install max. 15 blades, high speed with 60m per minute, instead of traditional slitting equipment completely.
Waste Removing System
Precision machinery design can control the roller rotating uniformly, avoid removing waste discontinuously due to unstable pressure, keep finishing labels clean.
- Suitable for prototyping or small production
- Contour cutting is performed automatically
- Perfect for low-cost, on-demand, short run labels, specialty labels of any shape, and helps reduce inventory.
- Max. cutting straight-line speed of 960mm/min
- Max. cutting curve-line speed of 600mm/min
- Max. media of 16”
- Max. cutting width of 12”
- Max. cutting length of 12” for one time
- Motor power: 25watt
- Max. down force: 750g (3g/step)
- CPU: 64 BIT dsp 32m Flash
- Encoder signal: physical 1016 line/round, logical 4064 line/round
- Repeating precision: 0.082mm
- Noise: 35 dB OR LESS
- Ambient temperature: 5 - 35 degrees
- With feeding system and rewinding system
- Servo control system, fast and quiet
- Direct USB, easy and reliable
- SD card memory: 4G, no need compuer to run machine
