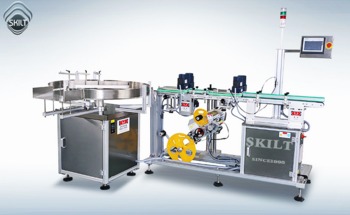

Label Power BLM-A Carton Bottom Labelling Applicator Machine
Code: 2031162PRINTERS
Label Power BLM-A Carton Bottom Labelling Applicator Machine
The model Label Power BLM-A Carton Bottom Labelling Applicator Machine is specially suited for applying labels to the bottom of cartons. Labeling machine labeling Engine use Germany brand, check label size directly, with five years guarantee period.
Label Power BLM-A Carton Bottom Labelling Applicator Machine
- Control system: SIEMENS PLC control system, with high stable operation and extremely low failure rate;
- Operation system: SIEMENS touch screen, with Chinese and English language, rich with help function and fault display function,easy operation;
- Check system: German LEUZE check label sensor, automatic check label position, stable and convenient don’t have much higher requirement for the worker skill;
- Send label system: American AB servo motor control system, stable with high speed;
- Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
- Machine Material: The machine and spare parts all use material S304 stainless steel and Anodized senior aluminium alloy,with high corrosion resistance and never rust;
- Low voltage circuit all use the France Schneider brand.
| Model | BLM-A |
|---|---|
| Driving Mode | Servo motor |
| Operating direction | Left or Right |
| Conveyor Speed?m/min? | ≤40 |
| Labeling Accuracy | ±1.0 mm |
| The inner diameter of label roll | 76 mm |
| The outer diameter of label roll | 350 mm(max) |
| The suitable size of label | Width 15-300 mm length 15-300 mm |
| The suitable size of labeling objects | Can customized depends on client product |
| Voltage (In China) |
AC220V 50/60HZ Single phase (Can customized as client need) |
