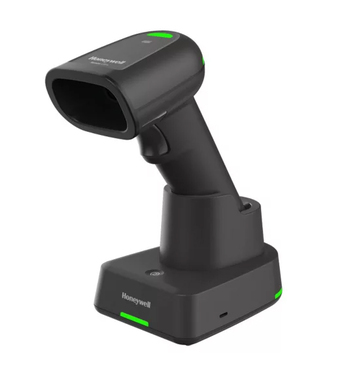

Honeywell Xenon Ultra 1962G Wireless Barcode Scanner
Download pdf Brochure (771 KB)Honeywell Xenon Ultra 1962g Cordless Bluetooth Handheld Scanner
The Xenon Ultra 1962g features cordless freedom, allowing retail associates to move easily around POS terminals, self-checkout stations, or customer service areas without being restricted by cables. With a compact, space-saving design, it fits seamlessly into modern POS setups where every inch counts.
Choose between a battery-free supercapacitor or a standard lithium-ion battery, with both options available in contactless configurations. The battery-free version charges in under 60 seconds using a powered USB port and delivers up to 450 scans per charge - ideal for high-traffic retail, quick service, and as a secondary scanner in bioptic setups.
Key Features:
- High-performance scanning for all 1D and 2D barcodes
- Cordless design for improved mobility and customer engagement
- Battery-free option charges in under 60 seconds
- Up to 450 scans per charge (battery-free version)
- Compact, ergonomic design ideal for retail POS and self-checkout
- Multiple power configurations for flexible deployment
Enhance your in-store operations with the Honeywell Xenon Ultra 1962g - the smarter, faster, and more flexible barcode scanning solution built for today’s retail challenges.
MECHANICAL
Dimensions (LxWxH):
Scanner: 108.2 mm x 70.4 mm x 160.2 mm (4.3 in x 2.8 in x 6.3 in)
Presentation Base: 82.9 mm x 90.4 mm x 121.6 mm (3.3 in x 3.6 in x 4.8 in)
Desktop/Wall Mount Base: 211.3 mm x 74.2 mm x 77.7 mm (8.3 in x 2.9 in x 3.0 in)
Weight:
Lithium-ion Scanner: 247 g / 255 g (contactless)
Battery Free Scanner: 218 g /227 g (contactless)
Presentation Base: 214 g / 220 g (contactless)
Desktop/Wall Mount Base: 223 g / 229 g (contactless)
Operating Power (Charging) Bases: 2.5W (500 mA at 5 V DC) Standard USB 10W (2A at 5V DC) – when utilizing power adapter
Non-Charging Power (Bases): 0.75W (150 mA at 5V DC)
Host System Interfaces: USB, Keyboard Wedge, RS-232
ENVIRONMENTAL
Operating Temperature:
Scanner: 0°C to 50°C (32°F to 122°F)
Bases: Charging: 5°C to 35°C (41°F to 95°F)
Non-Charging: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 0 % to 95 % relative humidity, non-condensing
ESD (Scanners and Cradles): ±8 kV indirect coupling plane, ±15 kV direct air
Drop: Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range
Mil Spec Drop: 8 ft
Tumble: 2,000 at 0.5 m (1.6 ft)
Environmental Sealing (Scanner): IP52
Environmental Sealing (CCB): IP41
Light Levels: 0 – 100,000 lux
SCAN PERFORMANCE
Image Sensor: 1280 x 1080 pixel array
Motion Tolerance: SR/HD – 4 meters/second
Imager Field of View: SR/HD – Horizontal: 42°; Vertical: 36°
Print Contrast: As low as 15 % Roll, Pitch, Skew: ±360°, ±65°, ±65°
Decode Capabilities: Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Note: Decode capabilities dependent on configuration
Illumination: White 2700K
LED aimer light source: 525 nm
Image Quality: 109 PPI on an A4 document
Object Detection: Configurable for 3 in or 6 in 1962 Cordless Scanner (refer to user’s manual)
WIRELESS
Radio/Range: 2.4GHz Bluetooth radio v4.2 with Adaptive Frequency Hopping.
Class 1: 100 m line of sight (default), programmable to Class 2: 10 m line of sight BLE available
POWER OPTIONS
Specifications the same for Xenon Ultra 1962 Contact and Contactless models
Battery: (based on default settings)– data based on utilization of power adapter
Capacity: 3300 mAh Li-ion (min) Number of Scans (1scan/sec): up to 80,000 scans per charge
Expected Duration of Operation: 22 hrs
Expected Charge Time: 4.5 hrs
Battery-free Supercapactior: (based on default settings) – data based on utilization of power adapter
Expected full charge time: < 60 seconds
Number of scans fully charged: 450
Charge Cycles: 500,000
*Supports USB BC1.2 charge ports, up to 2x faster charge rate
User Indicators: Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Charge Status LED Indicators, Battery LED indicator, Find my scanner button
Disinfectant Ready Housing (DRH) on all 1962g models
WARRANTY
1962 (cordless):
Scanner: 3 year factory warranty
Supercapacitor: 5 year factory warranty
Lithium-ion Battery Pack: 1 year
