Honeywell Voyager 1472G Scanner Kit

Zoom

Code: (LP)SCHW1472G2D2USB5R

$434.50 (inc GST)
$395.00 (exc GST)

Qty:

Download pdf Brochure (1702 KB)

Description Specifications

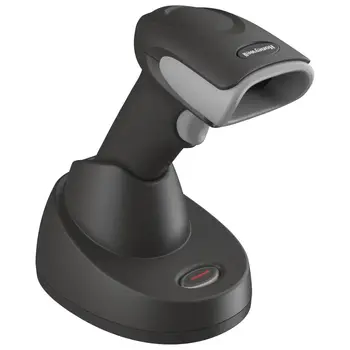

Honeywell Voyager 1472g Barcode Scanner Kit

The Voyager 1472g scanner is the perfect option for workflows that include 1D and 2D barcode reading and require a more robust and reliable solution.

FEATURES AND BENEFITS:

Highly accurate and fast scanning of even damaged and poor- quality barcodes, with an extended scan distance to reach the bottom of the cart without bending and wasted time at point of sale.
Enhanced performance on the codes stores scan every day, including digital coupons, codes, and wallets on customers’ smartphones, as well as merchandise codes at the register.
A longer Bluetooth range compared to competitive devices enables greater operational flexibility for line busting or peak season satellite POS stations.

WIRELESS

Radio/Range: 2.4 GHz to 2.5 GHz (ISM Band), Adaptive Frequency Hopping, Bluetooth v4.2, 30 m (98 ft) line of sight with Honeywell charger/communication base

Power Options: Battery: 2400 mAh Li-ion minimum / Number of Scans: Up to 50,000 scans per charge / Expected Duration of Operation: 14 hours / Expected Charge Time: 4.5 hours

User Indicators: Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume)

MECHANICAL/ELECTRICAL

Dimensions (L x W x H): 62 mm x 173 mm x 82 mm (2.5 in x 6.8 in x 3.2 in)

Charger/Communication Base: (CCB01-010BT-V1N) 132 mm x 102 mm x 81 mm (5.2 in x 4.0 in x 3.2 in)

Scanner Weight: 210 g (7.4 oz)

Charger/Communication Base: 179 g (6.3 oz)

Operating Power (Charging): Charger/Communication Base: 179 g (6.3 oz)

Standby Power: Charger/Communication Base: 0.5 W (0.1A @ 5V)

Host System Interfaces: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)

ENVIRONMENTAL

Operating Temperature:

Scanner: Charging: 5°C to 40°C (41°F to 104°F) / Non-Charging: 0°C to 50°C (23°F to 122°F)

Charger/Communication Base: Charging: 5°C to 40°C (41°F to 104°F) / Non-Charging: 0°C to 50°C (32°F to 122°F)

Storage Temperature:

Scanner: For storage up to 90 days: -20°C to 35°C (-4°F to 95°F) / For storage up to 1 year: -20°C to 20°C (-4°F to 68°F)

Charger/Communication Base: -40°C to 70°C (-40°F to 158°F)

Electrostatic Discharge (ESD) (Scanners and Cradles): ±8 kV indirect coupling plane, ±15 kV direct air

Humidity: 0% to 95% relative humidity, non-condensing

Tumble Spec: 1,000 0.5 m (1.6 ft) tumbles (impacts)

Drop: Engineered to withstand 30 1.8 m (6 ft) drops to concrete

Environmental Sealing: IP42

Light Levels: 0 to 100,000 lux (9,290 foot-candles)

SCAN PERFORMANCE

Scan Pattern: Area Image (1040 x 720 pixel array)

Motion Tolerance: 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus

Scan Angle: Horizontal: 39.2° nominal / Vertical: 27.4° nominal

Roll, Pitch, Skew: ±180°, ±65°, ±70°

Barcode Types: Reads standard 1D, PDF, 2D, and DotCode symbologies

Note: Decode capabilities dependent on configuration.

Warranty: 3-year factory warranty

DECODE RANGES (DoF)

TYPICAL PERFORMANCE* / STANDARD RANGE (SR)

5 mil Code 39 / 20 mm – 205 mm (0.8 in – 8.1 in)

13 mil UPC / 18 mm – 400 mm (0.7 in – 15.8 in)

6.7 mil PDF417 / 15 mm – 185 mm (0.6 in – 7.3 in)

10 mil DM** / 10 mm – 165 mm (0.4 in – 6.5 in)

20 mil QR / 5 mm – 325 mm (0.2 in – 12.8 in)
