Honeywell Imager 2D Voyager USB Kit Barcode Scanner

Code: 2040082SCANNERS

This Product Has Been Discontinued - Please See the Voyager 1470G as Replacement

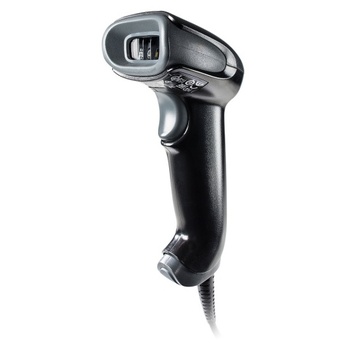

Honeywell Voyager 1450g Upgradeable Area-Imaging Scanner USB Kit


The Voyager 1450g allows enterprises to embrace area-imaging at their own pace, and in the most cost-effective manner. Built on the platform of Honeywell’s world-renowned Voyager series of handheld scanners, the Voyager 1450g delivers omnidirectional reading of linear bar codes, plus the ability to affordably upgrade the device to enable PDF and 2D bar code scanning—either at the time of purchase, or as data capture needs evolve.

For those who only need the ability to read linear and 2D bar codes, the Voyager 1450g is the perfect fit. It doesn’t include additional area-imaging features such as advanced image capture and processing applications; allowing Honeywell to keep costs down while offering aggressive linear and 2D scanning at an attractive price.

FEATURES:

  • Reliable Data Collection -  Offers omnidirectional reading of virtually all linear bar codes and the most widely used 2D bar codes, including poor quality and mobile bar codes (2D decoding available in select models).

  • Mobile Phone Reading - Scans coupons, mobile tickets and digital wallets from the screens of mobile devices

  • Future Proof - Delivers affordable scanning of 2D bar codes, allowing enterprises to meet their current and future bar code scanning needs with a single device

  • Flexible Licensing Solution - Meets diverse scanning requirements by offering models with basic functionality, with software licenses enabling additional functionality as needs evolve.

PHYSICAL CHARACTERISTICS

Dimensions (LxWxH) 62 mm x 169 mm x 82 mm (2.4” x 6.6” x 3.2”)

Weight 130g (4.6 oz)


ELECTRICAL CHARACTERISTICS

Input Voltage 4.0 to 5.5 VDC

Operating Power 2 W (400mA @ 5 VDC)

Standby Power 0.45 W (90mA @ 5 VDC)

Host System Interface:

USB, Keyboard Wedge, RS232, IBM 46xx (RS485)


ENVIRONMENTAL

Operating Temperature¹ 0°C to 40°C (32°F to 104°F)

Storage Temperature -40°C to 60°C (-40°F to 140°F)

Humidity Up to 95% relative humidity, non-condensing

Drop Designed to withstand 30 1.5m (5’) drops to concrete

Environmental Sealing IP40 Light Levels 0 to 100,000 lux (9,290 foot-candles)


SCAN PERFORMANCE

Scan Pattern Area Image (640 x 480 pixel array)

Motion Tolerance Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus

Scan Angle Horizontal 37.8°; Vertical 28.9°

Symbol Contrast 35% minimum reflectance difference

Pitch, Skew ±60°, ±70°

Decode Capability:

1450g1D: All standard 1D symbologies

1450gPDF: All standard 1D and PDF417 symbologies

1450g2D: All standard 1D, PDF417, and 2D symbologies
