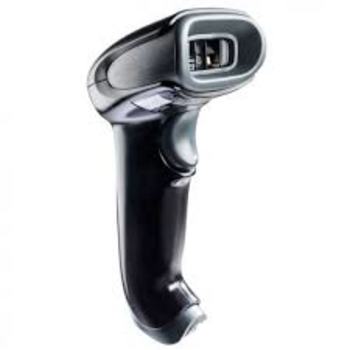

Honeywell Imager 2D Voyager USB Kit Barcode Scanner

Code: 2040089SCANNERS
Honeywell
$406.94 (inc GST)
$369.95 (exc GST)
Qty:

Honeywell Voyager 1452g Barcode Scanner 2D BT USB Kit Black

The Voyager 1452g allows enterprises to embrace area-imaging at their own pace, and in the most cost-effective manner. Built on the platform of Honeywell's world-renowned Voyager series of handheld scanners, the Voyager 1452g delivers omnidirectional reading of linear bar codes.

Incorporating a Bluetooth Class 2 radio, the Voyager 1452g has a wireless range of up to 10 meters (33 feet) from the base.

FEATURES:

  • Reliable Data Collection -  Offers omnidirectional reading of virtually all linear bar codes and the most widely used 2D bar codes, including poor quality and mobile bar codes (2D decoding available in select models).

  • Mobile Phone Reading - Scans coupons, mobile tickets and digital wallets from the screens of mobile devices

  • Go Beyond 1D Codes - Unlike traditional laser scanners, the 1D version of Voyager 1452g can read bar codes omni-directionally, making it ideal for presentation scanning.

  • Remote MasterMind Ready - Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices.

PHYSICAL CHARACTERISTICS

Dimensions (LxWxH) - 62 mm x 173 mm x 82 mm (2.5" x 6.8" x 3.2")

Weight 210 g (7.4 oz)


ELECTRICAL CHARACTERISTICS

Operating Power (Charging) N/A 5 W (1A @ 5V)

Non-Charging Power N/A 0.5 W (0.1A @ 5 V)

Host System Interfaces N/AUSB, Keyboard Wedge, RS232 TTL, IBM 46xx (RS485)


ENVIRONMENTAL

Operating Temperature

Charging: 5°C to 40°C (41°F to 104°F)

Non-Charging: 0°C to 50°C (23°F to 122°F)

Charging: 5°C to 40°C (41°F to 104°F)

Non-Charging: 0°C to 50°C (32°F to 122°F)

Storage Temperature with Battery

For storage up to 90 days: -20°C to 35°C (-4°F to 95°F)

For storage up to 1 year: -20°C to 20°C (-4°F to 68°F)

-40°C to 70°C (-40°F to 158°F)

Humidity

0 to 95% relative humidity, non-condensing0 to 95% relative humidity, non-condensing

Drop

Designed to withstand 30 1.5 m (5’) drops to concrete

Designed to withstand 50 1.0 m (3.3’) drops to concrete

Environmental Sealing IP42IP41

Light Levels

0 to 100,000 lux (9,290 foot-candles) N/A


SCAN PERFORMANCE

Scan Pattern

Area Image (640 x 480 pixel array)

Motion ToleranceUp to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus

Scan AngleHorizontal 37.8°; Vertical 28.9°

Symbol Contrast

35% minimum reflectance difference

Pitch, Skew±60°, ±70°

Decode Capability1452g

1D: All standard 1D symbologies1452g2D: All standard 1D, PDF417, and 2D symbologies

Warranty

3 year factory warranty
