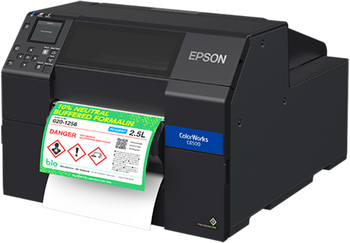

Epson ColorWorks CW-C6510P (Peeler)

Code: EPSON-CW-C6510P-208

Epson ColorWorks CW-C6510P 8" Colour Label Printer with Peeler

These on-demand label printers extend Epson’s existing range to meet the needs of small- to medium-sized customers across many sectors including food, chemical, beverage, pharmaceutical and logistics.  The CW-C6510P provides an easy transition for customers looking to upgrade their thermal transfer printers to colour inkjet label printer. It features similar media handling capabilities, speed, features and connectivity options that deliver seamless integration with existing workflow.

The CW-C6510P can support media widths of 25.4mm to 215.9 mm. In practical terms, these ColorWorks label printers can print anything from tiny labels for eyedropper bottles, to large durable labels suitable for chemical drums. This media flexibility and on-demand digital four colour print (even with small label sizes) will make life easier for time-sensitive businesses with many SKUs to manage.

Highlights:

  • Reliable – Engineered by Epson for demanding applications
  • Enhanced productivity – Eliminates the need to pre-print
  • Astounding image quality – up to 1200 dpi resolution with spot colour matching and ICC profiling function
  • Seamless integration – Compatible with ZPL II, major middleware and OS
  • Versatile application – Peel-and-present and auto-cutter options available

In summary, new and different features for the ColorWorks C6510P include:

  • Media flexibility: from 25.4mm to 215.9mm media widths
  • Compact and easy-to-use
  • Large, 2.7" colour LCD with multi-language support
  • Roll replacement is possible from front, right, left or back
  • Accurate colour reproduction with the use of an ICC profiles function and spot-colour management
  • Excellent image quality: up to 1200 dpi print resolution
  • Easy integration: Compatible with ZPL II, major middleware, SAP, Windows, MAC and Linux OS
  • Money saving: no need for pre-printed stock of labels - print full colour on blank labels
  • Integration: Applicator I/O control port allows seamless integration into production liens



Print

  • Printing speed 119 mm/s (max)
  • Printing resolution 1200 dpi x 1200 dpi (max)
  • Printing width Max 211.9 mm
  • Colours 4 colours

Media

  • Format Roll media, fanfold media
  • Type Matte paper label, synthetic label, glossy paper label, glossy film label, high glossy paper label
  • Roll media shape Continuous label (BM or w/o BM), Die-cut label (Gap or BM)
  • Fanfold media shape Die-cut label (BM)
  • Roll Diameter Max. 152.4 mm
  • Media width (back paper width) 25.4 mm – 215.9 mm

Reliability

  • Carriage life 6 mil. pass
  • Paper feeding mechanism life 200 km or 1.5 mil. pages
  • Auto-cutter life (for A/C model) Die-cut label backing: 1.5 mil. cuts, continuous label (matte): 0.2 mil. cuts, continuous label (synthetic): 0.1 mil cuts,

General

  • Power 100 ~ 240V AC
  • Operating 230V: average approximately 38.7 W
  • Stand-by 230V: average approximately 5.82 W
  • Power off state 230V: average approximately 0.24 W
  • Interface USB2.0, Ethernet 1000Base-T / 100Base-TX / 10Base-T
  • Extended interface Dsub-25 pin
  • Product dimensions 340 x 565 x 326 mm (width x depth x height)

Weight*

  • Peeler model: Appx.22.8 kg,
  • Autocutter model Appx.22.5 kg

*Not including the ink cartridge and roll media. Software Commands ESC/Label

Operating systems

Windows 11, 10, 8.1, 8, 7 SP1, Vista SP2, XP SP3 or later, Server 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003 R2 (32-bit), Mac OS X 10.6.8, Mac OS X 10.7.x, Mac OS X 10.8.x, Mac OS X 10.9.x, Mac OS X 10.10.x, Mac OS X 10.11.x, Mac OS X 10.12.x, Mac OS X 10.13.x, Mac OS X 10.14.x

Warranty - One year
