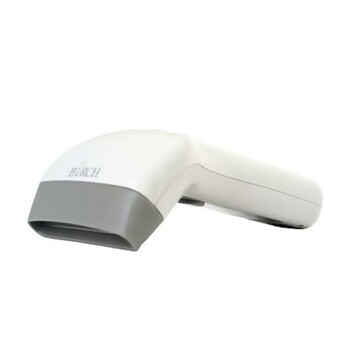

Birch CD108e Enhanced CCD Barcode Scanner

Code: Birch_CD108e
Birch
$109.95 (inc GST)
$99.95 (exc GST)
Qty:

Birch CD108e Enhanced CCD Barcode Scanner

Learning Capabilities

The Birch CD-108e allows users to define setup parameters in their PC's and download them to the scanner. In fact, all the configuration of the scanner can be done on a PC and downloaded to the unit. The CCD will send a command to the PC to report the status.

Low Power Consumption

This scanner uses an operational current of 60mA, which makes it ideal for mobile devices such as Notebooks and PDAs.

Enhanced CCD:
with the rapid development of computer & communication technology, as a CCD Scanner expertise, User can easily define all the setup parameters in PC and download it to the reader.

Notebooks PnP design:
Most of the CCD reader when conected to a Notebook PC, an additional keyboard terminator is needed. which not only increase the cost but also bring inconvenience to the user. The CD-108E plug and play design can be use directly with to a notebook without any additional device. there is an optional model for IBM Thinkpad Notebook.

Modular design:
considering the ease of upgrade and service, CD-108E adopts a modular design, it can be easily upgrade and is your best choice for SKD (Semi-Knock-down) business.

3-in-1 interface and USB (Optional):
it's buld in with keyboard, RS-232, Wand emulation interface. Different interface can be interchange by just changing cable. and USB optional model is also provided.

Optional Functions:



  • Data formatting, Data can be insert to the bar code rader.
  • Download configuration setting, no operation manual is needed for setting.
  • Configuration can be done on a PC and download the result to the unit.
  • Special communication Command, if a barcode cannot be decoded.
  • The CCD will send a command to Host to report the status.



Output interfaces

  • PS/2 (Keyboard), Serial, USB.

Laser module

  • N/A.

Readable barcodes

  • PC/EAN/JAN & Addition 2/5, Code 39, Code 39 FULL ASCII, Interleave 25, Industrial 25, Matrix25 Code 11, Code 128, Codabar/NW7, Code 93, MSI/PLESSY, Code 32, BC412, China Postage. Others upon request.

Depth of field

  • 25mm/0.5mm(20mil) width code.

PCS value

  • 0.45/0.25(10mil) width code.

Resolution

  • 0.127(5mil)/PCS 0.8.

Scanning rate

  • 100scans/second. 0.125mm (5 mil).

Light source

  • RED LED 660nm.

Read indicator

  •  LED.

Width of window

  • 80mm.

Ambient light

  • 800 lux max (sunlight).

Relative humidity

  • 20% to 85%(Non-condensing).

Operating temp

  • 0 to 40 degrees C.

Storage temp

  • -20 to 60 degrees C.

Voltage

  • DC +5V, +-5%.

Housing

  • ABS Plastic & Rubber.

Operating current

  • 60mA typical.

Standby current

  • 28mA typical.

Dimensions

  • 170mm x 70mm x 64mm.

Weight

  • Approx 150g.

Please note: product specifications are subject to change without prior notice.
