Argox X-1000VL

Code: 2005104DEMO
$1094.50 (inc GST)
$995.00 (exc GST)

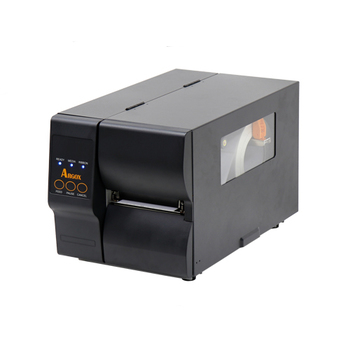

Get Up and Running Quickly with the Argox X-1000VL Colour Label Printer / Demo Clearance Model

The new X-1000VL industrial barcode printer offers outstanding performance and value in an all-metal housing well-suited for harsh environments. A 32-bit RISC microprocessor provides print speeds up to 4ips, which is ideal for medium-volume printing requirements. The 4MB Flash memory and 8MB SDRAM ensures smooth operation and high reliability.

The user-friendly print mechanism lets you easily adjust ribbon pressure and print quality by hand—no need for special tools. An external switch sets the printer for use with either inside or outside coated ribbons, and an adjustable ribbon guide stabilizes the ribbon during printing. The X-1000VL printer is flexible, easy-to-use, and offers value and high performance printing for industrial environments.


X-1000VL Features:

  • For heavy duty labeling demand.
  • 203dpi low resolution models available.
  • 32-bit CPU,up to 4ips printing speed, and enlarged memories.
  • Adjustable reflective and transmissive double sensor system ensures precise label detection to meet versatile media demands.
  • Centronics parallel,RS-232 and USB and interfaces available for versatility applications.
  • Industrial-strength media management: 360M ribbon wax & 8″ media compartment.
  • Easy media loading & ribbon installation.
  • An external switch sets the printer for use with either ribbon wound ink-side in or ink-side out.
  • PPLA,PPLB emulations available.
  • Durable and easy maintenance:easy-to-replace cutter and peeler.
  • Support 1D/GS1 Data bar, 2D/ Composite codes and QR barcodes.
  • Full range of options:Cutter,Peeler,Media stacker,Font card,RTC.
  • Printer Server external for Wireless/Bluetooth options.


Printing Method Direct Thermal & Thermal Transfer
  Printing Resolution 203 dpi(8 dots/mm)
  Printing Speed Max. 4 ips
  Printing Length Max. 50”(1270mm)
  Printing Width Max. 4.09”(104mm)
  Memory 8MB DRAM, 4MB Flash ROM
  CPU Type 32 bit RISC microprocessor
  Sensors Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)
  Operation Interface LED Indicator x 3, Button(Feed) x 3
  Communication Interface USB device, RS-232, Parallel
  Fonts Internal character sets standard 5 alpha-numeric fonts with height from 0.049”~0.23” Internal front are expandable up to 24x24 4 direction 0°~270° rotation Soft fonts are downloadable(up to 72 point)
  Wireless Security N/A
  1D Barcodes PPLA: Code 39 ,UPC-A,UPC-E,Code 128 subset A/B/C,EAN-13,EAN-8,HBIC,Codabar,Plessey,UPC2,UPC5,Code 93,Postnet ,UCC/EAN-128,UCC/EAN-128 K-MART,UCC/EAN-128 Random Weight,Telepen,FIM,Interleave 2 of 5 (Standard/with modulo 10 checksum/with human readable check digit/with modulo 10 checksum & shipping bearer bars),GS1 Data bar (RSS)
PPLB: Code 39,UPC-A,UPC-E,Matrix 2 of 5,UPC-Interleaved 2 of 5,Code 39 with check sum digit,Code 93,EAN-13,EAN-8 (Standard, 2 /5digit add-on),Codabar,Postnet,Code128 subset A/B/C,Code 128 UCC (shipping container code),Code 128 auto,UCC/EAN code 128 (GS1-128),Interleave 2 of 5,Interleaved 2 of 5 with check sum,Interleaved 2 of 5 with human readable check digit,German Postcode,Matrix 2 of 5,UPC Interleaved 2 of 5,EAN-13 2/5 digit add-on,UPCA 2/5 digit add-on,UPCE 2/5 digit add-on,GS1 Data bar (RSS)
PPLZ: Code39,UPC-A,UPC-E,Postnet,Code128 subset A/B/C,Interleave 2 of 5,Interleaved 2 of 5 with check sum,Interleaved 2 of 5 with human readable check digit,Code 93,Code 39 with check sum digit,MSI,EAN-8,Codabar,Code 11,EAN-13,Plessey,GS1 Data bar (RSS),Industrial 2 of 5,Standard 2 of 5,Logmars
  2D Barcodes PPLA:MaxiCode,PDF417,Data Matrix (ECC 200 only),QR code,Composite Codes,Aztec Barcode,Micro PDF417
PPLB:MaxiCode,PDF417,Data Matrix (ECC 200 only),QR code,Composite Codes,Aztec Barcode
PPLZ:MaxiCode,PDF417 ,Data Matrix (ECC 200 only),QR code,Composite Codes,Aztec Barcode,Micro PDF417
  Graphics PPLA: PCX, BMP, IMG, GDI and HEX format files
PPLB: PCX , Binary Raster, BMP and GDI
PPLZ: GRF, Hex and GDI
  Emulation PPLA, PPLB, PPLZ
  Software-label Editing BarTender® from Seaguall Scientific
Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
  Software-utility Printer Utility, Font Utility
  Driver tools Argox Seaguall Driver (Windows XP/Vista/Win7/Win8/Win10)
Argox Linux Printer Driver
Argox macOS Printer Driver
Argox RPi Printer Driver
  Media Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label
  Media Max. Width:4.4”(112mm) Min. Width:1”(25.4mm) Thickness:0.0025”~0.01”(0.0635~0.254mm) Max. roll capacity(OD):8”(203mm) Core size:3”(76mm) / Max. roll capacity(OD):7”(177.8mm) Core size:1.5”(38mm)
  Ribbon Ribbon Width: 1”~4”(25.4mm~101.6mm) Ribbon roll – Max. OD: 3”(76mm) Ribbon Length: Max. 360m wax
  Drop Resistance N/A
  Printer Dimensions W 250mm x H 263mm x D 418mm
  Printer Weight 13 kgs
  Power Source Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz
 Battery N/A
