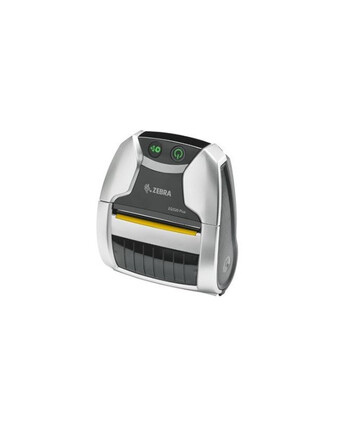

Zebra ZQ320
ZEBRA MOB ZQ320 PLUS 3IN OUTDOOR WIFI
Class-leading mobile printing versatility, durability and remote management
Mobile printing capabilities in your retail store directly impact customer service quality and associate productivity. Time spent by
your field workers writing receipts could be time spent making more customer visits. The Zebra ZQ320 Plus Series printers let your
associates do it all. With receipt printing, associates can ring up sales anywhere in the store. With on-the-spot printing of labels, store
associates can complete markups, markdowns and shelf label audits faster and more accurately.
Connect to Virtually Any Handheld
Pair the ZQ320 Plus Series with practically any mobile
device—any Bluetooth®-enabled Zebra mobile handheld
computer and tablet, as well as any Android™, iOS®,
Windows® CE and Windows Mobile device. It’s also MFi
certified for iOS devices.
STANDARD FEATURES:
Field Service
• Invoices/Receipts
• Inventory Lists
• Schedule Printouts
• Parts Reconciliations
Transportation and Logistics
• Invoices
• Receipts
• Ticketing
Government
• Parking Violations
• E-citations
• Utility Meter Reading
• Postal Delivery Notices
DSD
• Invoices
• Proof of Delivery
Notices
• Receipts
• End-of-Day Reports
Courier
• Invoices
PRINTING SPECIFICATIONS
Operating System: Link-OS® printer operating system
Print Method: Direct Thermal
Resolution: 203 dpi/8 dots mm
Memory: 128MB RAM, 256MB Flash (48 MB User Available)
Battery: Li-Ion 2280 mAh, 7.2V, PowerPrecision+
Maximum Print Width:
ZQ310/ZQ310 Plus printer: 48 mm/1.89 in.
ZQ320/ZQ320 Plus printer: 72 mm/2.83 in.
Maximum Print Speed:
Up to 4 ips (100 mm/s)
Media Sensors: Black mark Gap (optional) (bar sensor is for the top side marks only)
Programming Languages:
CPCL, ZPL. The ZPL programming language
ensures full compatibility with many other Zebra printers
Cutter: Tear bar
Print Direction: Horizontal and vertical
MEDIA SPECIFICATIONS
Media Width:
ZQ320 Plus printer:
80 mm +0.75 mm/3.15 in. +0.02 in.; spacers
available to support 76 mm +0.75 mm/3 in.
+0.02 in.
Maximum Roll Outside Diameter:
40 mm/1.57 in.
Media Holder:
Drop-in fixed media width (clamshell)
Media Thickness:
0.05334 mm/0.0021 in. to 0.16 mm/0.0063 in.
Media Types:
Direct thermal: receipt paper, linerless labels, labels
Minimum Receipt Length:
12.5 mm/0.49 in.
Maximum Receipt Length:
Unconstrained in line mode
Label Counter:
Odometer
PHYSICAL CHARACTERISTICS - DOUBLE SIDED
ZQ320 Plus:
130 mm L x 117.7 mm W x 49.5 mm H
5.12 in. L x 4.63 in. W x 1.95 in. H
Volume ZQ310/ZQ310 Plus: 601.7 cc/36.7 cubic in.
Weight with battery ZQ310/ZQ310 Plus: 0.37 kg/0.81 lbs
ADDITIONAL OPTIONAL FEATURES:
Communication And Interfaces Capabilities
Bluetooth: BR/EDR, LE 4.2
USB 2.0: Client, Type-C™ connector
NFC: Passive NFC tag
