ZEBRA MOB ZQ610 PLUS 2IN BT4/WLAN

Code: (LP)PRZZQ61AAWAA0400

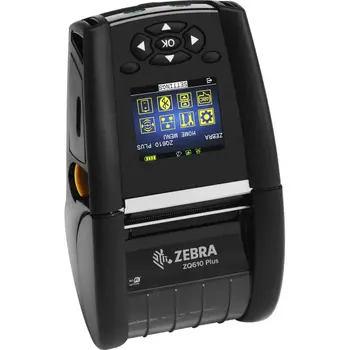

Zebra ZQ610

ZEBRA MOBILE PRINTER

Maximize productivity, operations, and customer service with ZQ610 Plus Series mobile printers. From the manufacturing and warehouse floors to the retail store, to the healthcare facility and on the go in transportation & logistics applications, your team can print labels, tags and receipts—right on the spot.

The ZQ610 Plus Series takes Zebra’s popular QLn platform and makes it even better, adding advanced technology—including RFID*—and innovative design that drive productivity, ease-of-use and manageability to a new level. Loaded with features and available in 2-inch, 3-inch and 4-inch models, including healthcare versions, they give your team a competitive edge—even during the longest shift.

Large color display, class-leading patented battery technology for full-shift power, the latest Wi-Fi and Bluetooth connections, and instant wake-up feature help your users do more wherever they work. The ZQ610 Plus Series is supported by our powerful Print DNA suite of applications, utilities, and developer tools—powered by Link-OS—that give our printers better performance, simplified remote manageability, and easier integration.

STANDARD FEATURES:

• Apple® iOS, Android™ and Windows® Mobile connectivity

• Direct thermal printing of barcodes, text and graphics

• CPCL, EPL™ and ZPL® programming languages

• 512 MB Flash supports downloadable programs, receipt formats, fonts

and graphics (128 MB available for user storage)

• ZQ620/ZQ620 Plus & ZQ610/ZQ610 Plus: 3250 mAh (nominal) 23.4 Wh

removable, rechargeable PowerPrecision+ Li-Ion battery

ZQ630/ZQ630 Plus: 6800 mAh (nominal) 49.4 Wh removable, rechargeable

PowerPrecision + Li-Ion battery

• Built-in battery charger

• Belt clip for unobtrusive and convenient printing (not compatible with

extended capacity battery)

• Black mark and gap media sensing using fixed center position sensors

• Easy-to-use peel and present mode

• Label present sensor for issuing labels one at a time

• Tear bar for easy media dispensing

• Center-loading media locking for variable roll widths

• “Clamshell” design for easy media loading

• Management: Mirror, SNMP, Web server, Profile Manager, AirWatch®,

SOTI® MobiControl™ and Ivanti Avalanche® (powered by Wavelink)

• Large, easy-to-read color display (288 x 240 pixels)

• Color display can be customized using WML (text and icons)

• 5-way navigation buttons, two software defined keys

• Printer color alerts on the display

• Tolerance of multiple drops from 5 ft./1.52 m (ZQ620/ZQ620 Plus & ZQ610/

ZQ610 Plus) and 6 ft./1.83 m (ZQ630/ZQ630 Plus) to concrete²

• IP54 dust and water resistance rating

• 400 MHz 32-bit ARM processor

• XML support

• Supports vertical and horizontal printing

• Printers can be used in any orientation

• QR barcode links to web-based help pages

• Zebra Print Touch simplifies Bluetooth pairing and launches web-based

help pages with Near Field Communication (NFC) enabled devices

• Label odometer

• NTP (Network Time Protocol) support via Wi-Fi or Ethernet

• Supports Zebra Network Connect manufacturing plant floor solution when

used with the Ethernet cradle

• RFID is available on the ZQ630/ZQ630 Plus as a separate product (please see

the ZQ630/ZQ630 Plus RFID Spec Sheet for more information)

PRINTING SPECIFICATIONS

Operating System:Link-OS®

Resolution: 203 dpi resolution (8 dots per mm)

Memory:
256 MB RAM; 512 MB Flash (standard)
Maximum Print Width:
ZQ610/ZQ610 Plus: 1.9 in./48 mm
Maximum Print Speed:
Up to 4.5 in./115 mm per second

Media Sensors:

Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time

Print Length:

Minimum: 0.5 in./12.7 mm

Maximum: 32 in./813 mm

Power:

ZQ610 Plus: 3250 mAh (nominal) 23.4 Wh removable, rechargeable

PowerPrecision+ Li-Ion battery

Media Characteristics
Maximum Media:
1.0 in./25 mm to 2.18 in./55.4 mm
Maximum Media Roll Size:

ZQ610/ZQ610 Plus: 2.2 in./55.9 mm OD on a

0.75 in./19 mm or 1.375 in./34.9 mm inner core

Maximum Media Thickness:
2.3 mil to 5.5 mil tag stock or 6.5 mil label stock

Minimum Media Thickness:
Media Types:

Die-cut labels and tags, linerless labels, receipt

paper, RFID (ZQ630/ZQ630 Plus RFID compatible),

black bar and gap
