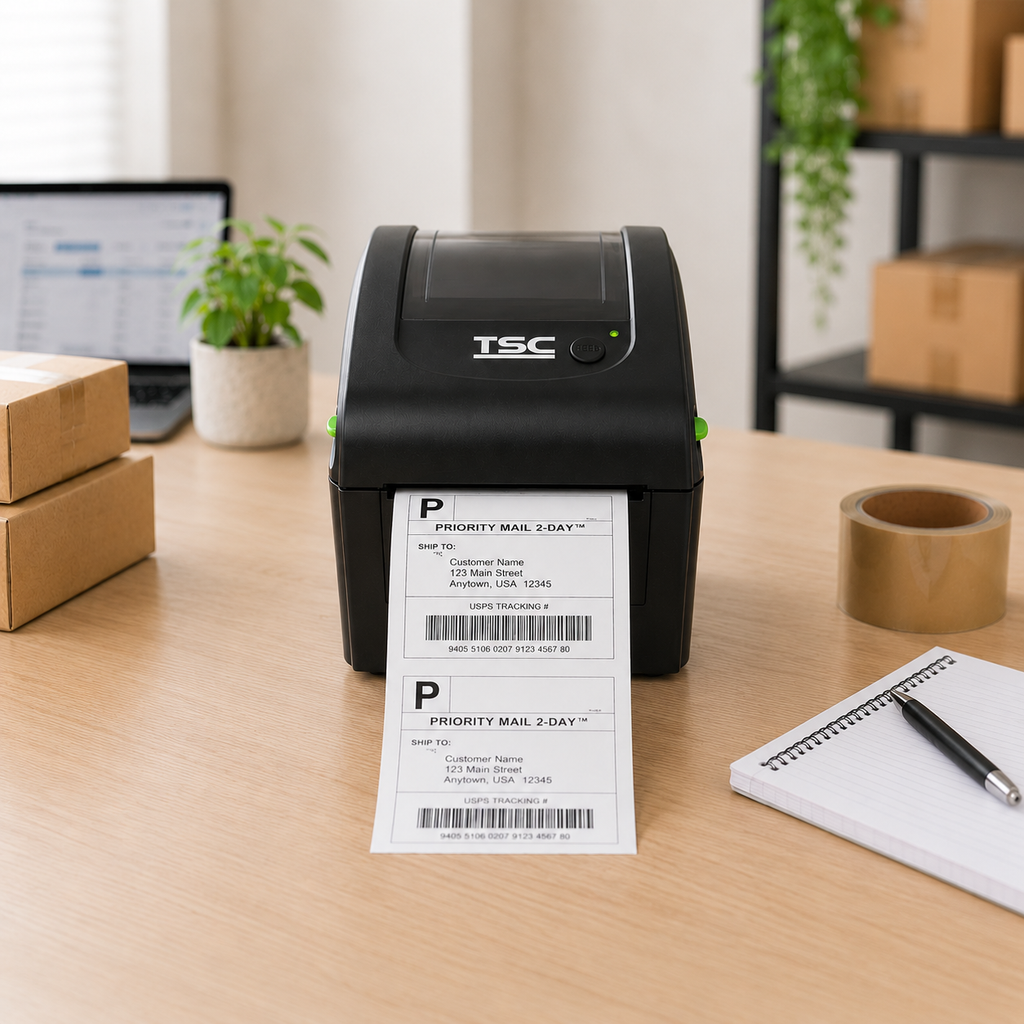

TSC - DA Series 4" Direct Thermal Printer
AUD 409.75 incl GST
TSC - DA Series 4" Direct Thermal Printer
AUD 409.75 incl GST
TSC DA Series Direct Thermal Barcode Printer
The TSC DA Series is a compact range of direct thermal desktop barcode printers designed for shipping labels, retail labels, product identification, healthcare labels, asset tracking and general business labelling.
Combining a compact footprint with simple media loading and dependable direct thermal printing, the DA Series provides an economical label printing solution for offices, warehouses, retail stores, healthcare facilities, laboratories and dispatch environments.
The range includes both 203 dpi and 300 dpi models, allowing businesses to select either faster everyday barcode printing or higher-resolution output for smaller text, compact barcodes and detailed label designs.
Product Overview
The TSC DA Series is designed for businesses that require reliable desktop label printing without the additional consumable cost of thermal transfer ribbon.
Direct thermal labels are activated by heat from the printer’s printhead. This makes the DA Series particularly suitable for short-to-medium-life labels used in freight, warehousing, retail, healthcare, office administration and general identification.
The double-walled clamshell enclosure provides straightforward access to the internal media compartment. A spring-loaded, centre-biased roll holder helps keep the label roll correctly positioned and makes routine media changes easier.
Gap, black-mark and head-open sensors are included to support accurate media detection and dependable operation across compatible continuous, die-cut, black-mark, notched and fan-fold label stocks.
DA210, DA220, DA310 and DA320 Model Comparison
| Model | Resolution | Maximum Speed | Maximum Print Width | Memory | Typical Use |
|---|---|---|---|---|---|
| DA210 | 203 dpi | Up to 152.4 mm/sec | 108 mm | 8 MB Flash 16 MB DRAM |
General shipping, address, inventory and retail labels |
| DA310 | 300 dpi | Up to 102 mm/sec | 105.7 mm | 8 MB Flash 16 MB DRAM |
Smaller text, compact barcodes and detailed label designs |
| DA220 | 203 dpi | Up to 152.4 mm/sec | 108 mm | 128 MB Flash 64 MB DRAM |
Higher-volume desktop printing and more advanced system integration |
| DA320 | 300 dpi | Up to 102 mm/sec | 105.7 mm | 128 MB Flash 64 MB DRAM |
Detailed labels requiring additional memory and connectivity options |
Maximum performance varies by model, media, label design, print settings and operating environment.
203 dpi vs 300 dpi: Which Resolution Should I Choose?
Choose 203 dpi for everyday barcode and shipping labels
The 203 dpi DA210 and DA220 models are suited to standard shipping labels, carton labels, address labels, inventory labels and general-purpose barcode printing.
- Faster maximum print speed
- Suitable for common one-dimensional barcodes
- Ideal for standard shipping and warehouse labels
- Lower-cost option for general label printing
Choose 300 dpi for smaller text and more detailed labels
The 300 dpi DA310 and DA320 models produce greater image density, making them suitable for labels containing compact text, smaller barcodes or more detailed graphics.
- Improved clarity for small fonts
- Better definition for compact QR codes and two-dimensional barcodes
- Suitable for specimen, pharmacy and product-identification labels
- Useful where the available label area is limited
Available Printer Configurations
The available finishing configuration depends on the selected printer model and product variant.
Standard
The standard configuration prints labels for manual removal or separation. It is suitable for everyday shipping, retail, inventory and office label printing.
Cutter
A guillotine cutter automatically separates compatible labels or continuous media after printing. Full-cut and partial-cut functionality depends on the selected cutter configuration.
Peel and Present
The peel-off module separates each printed label from its backing liner and presents it at the front of the printer for immediate application.
Linerless Tear
Designed for compatible linerless direct thermal media, this configuration allows labels to be separated using the integrated tear mechanism while reducing backing-liner waste.
Cutter, peel-and-present and linerless functionality is not available on every DA Series model. Select the required configuration from the product variants or contact Label Power before ordering.
Printing Performance
The DA Series uses a 32-bit RISC processor and a 60-watt external power supply to support consistent direct thermal label printing.
- Direct thermal printing method
- 203 dpi and 300 dpi model options
- Maximum speed of 152.4 mm per second on selected 203 dpi models
- Maximum speed of 102 mm per second on 300 dpi models
- Maximum print width of up to 108 mm
- Font and barcode rotation through 0, 90, 180 and 270 degrees
- Supports text, graphics, one-dimensional barcodes and two-dimensional barcodes
Maximum print length varies significantly between models. Businesses printing unusually long continuous labels should confirm the selected model’s maximum print length before ordering.
Media Compatibility
The DA Series supports a broad selection of direct thermal labels, tags and compatible continuous media.
| Media types | Continuous, black mark, fan-fold and notched media |
|---|---|
| Media winding | Outside wound |
| Media width | 19 mm to 114 mm |
| Media thickness | 0.055 mm to 0.19 mm |
| Internal roll diameter | Up to 127 mm outside diameter |
| Media core diameter | 25.4 mm to 38 mm |
| Minimum label length | 10 mm |
| Media sensing | Transmissive gap sensor and reflective black-mark sensor |
An optional external roll mount can support larger media rolls with an outside diameter of up to approximately 214 mm, depending on the selected model and accessory configuration.
Connectivity and System Integration
Connectivity varies by the DA Series model and selected hardware configuration.
All product variants should be checked individually before ordering, particularly where Ethernet, serial communication, USB host functionality or integration with existing systems is required.
- USB 2.0 high-speed connectivity
- Ethernet on selected configurations
- RS-232 serial connectivity on selected configurations
- USB host functionality on selected configurations
- Support for compatible keyboard-display accessories on selected configurations
The DA220 and DA320 provide additional memory and broader communication capabilities than the entry-level DA210 and DA310 models.
Printer Languages and Emulation Compatibility
The DA Series uses TSPL-EZD printer firmware, providing compatibility with several commonly used desktop barcode printer languages.
- TSPL
- EPL compatibility
- ZPL compatibility
- ZPL II compatibility
- DPL compatibility
This compatibility can simplify the replacement of older desktop label printers by allowing many existing label formats or software workflows to be retained.
Compatibility should still be tested where an existing application relies on unusual commands, custom fonts, legacy drivers or manufacturer-specific printer behaviour.
Supported Barcodes
The TSC DA Series supports a broad selection of commonly used one-dimensional and two-dimensional barcode formats.
Common one-dimensional barcode formats
- Code 39
- Code 93
- Code 128
- EAN-8 and EAN-13
- UPC-A and UPC-E
- Interleaved 2 of 5
- ITF-14
- Codabar
- GS1-related barcode formats
Common two-dimensional barcode formats
- QR Code
- Data Matrix
- PDF417
- Micro PDF417
- MaxiCode
- Aztec
- GS1 DataBar
Ideal Applications
- Small parcel shipping labels
- Courier and freight labels
- Mailroom address and routing labels
- Shipping and receiving labels
- Warehouse inventory labels
- Product identification labels
- Retail point-of-sale labels
- Shelf and price labels
- Asset tracking labels
- File and document labels
- Entertainment and transport tickets
- Specimen identification labels
- Pharmacy labels
- Patient tracking labels
- General office labelling
Technical Specifications
| Product range | TSC DA Series |
|---|---|
| Models | DA210, DA220, DA310 and DA320 |
| Printing method | Direct thermal |
| Available resolutions | 203 dpi or 300 dpi, depending on selected model |
| Maximum print speed | Up to 152.4 mm/sec at 203 dpi or 102 mm/sec at 300 dpi |
| Maximum print width | 108 mm at 203 dpi or 105.7 mm at 300 dpi |
| Processor | 32-bit RISC CPU |
| Memory | Varies by model from 8 MB Flash and 16 MB DRAM to 128 MB Flash and 64 MB DRAM |
| Printer language | TSPL-EZD with EPL, ZPL, ZPL II and DPL compatibility |
| Media width | 19 mm to 114 mm |
| Media thickness | 0.055 mm to 0.19 mm |
| Internal roll capacity | Up to 127 mm outside diameter |
| Media core | 25.4 mm to 38 mm |
| Sensors | Gap, black mark and head-open sensors |
| Operation controls | Power switch, feed button and three-colour status LED |
| Dimensions | 172 mm wide × 165 mm high × 195 mm deep |
| Weight | Approximately 1.5 kg |
| Power supply | External universal 100–240 V AC switching power supply |
| Power output | 24 V DC, 2.5 A, 60 W |
| Operating temperature | 5°C to 40°C |
| Operating humidity | 25% to 85% non-condensing |
| Enclosure | Double-walled plastic clamshell design |
Specifications differ between models and configurations. The selected product variant remains the controlling specification.
Included Accessories
Standard supplied accessories include:
- Quick-start guide
- USB cable
- Power cord
- External universal switching power supply
Included items may vary by region, model or supplied package. Confirm the final package contents on the selected variant.
Warranty Information
- Printer: two-year limited manufacturer warranty
- Printhead: 25 km or 12 months, whichever occurs first
- Platen roller: 50 km or 12 months, whichever occurs first
Warranty coverage is subject to the manufacturer’s conditions, correct installation, approved consumables and normal operating use.
BarTender Label Design Software
BarTender UltraLite label design software is supplied with eligible TSC printer packages, providing essential tools for creating and printing barcode labels.
Businesses requiring database connectivity, automated printing, integration, security controls, centralised management or advanced label workflows can upgrade to a full BarTender edition.
Contact Label Power for assistance selecting the correct BarTender edition for your printing environment.
Frequently Asked Questions
What is the TSC DA Series?
The TSC DA Series is a range of compact direct thermal desktop barcode printers for shipping, retail, healthcare, inventory and general business labels.
Does the DA Series require thermal transfer ribbon?
No. These printers use direct thermal media and do not require a thermal transfer ribbon.
What is the difference between the DA210 and DA220?
Both models print at 203 dpi. The DA220 provides significantly more onboard memory and supports broader hardware communication and finishing configurations.
What is the difference between the DA310 and DA320?
Both models print at 300 dpi. The DA320 provides greater memory and supports broader communication and finishing configurations.
Which model is best for shipping labels?
A 203 dpi model such as the DA210 or DA220 is generally suitable for standard freight, courier and address labels. The DA220 may be preferable where Ethernet, serial integration or finishing options are required.
Which model is best for small text or compact barcodes?
The 300 dpi DA310 and DA320 models provide greater print density for small text, fine lines and compact two-dimensional barcodes.
What is the largest label width supported?
The printer accepts media up to 114 mm wide. Maximum printable width is up to 108 mm on 203 dpi models and 105.7 mm on 300 dpi models.
Can the DA Series print QR codes?
Yes. The DA Series supports QR Code, Data Matrix, PDF417, Aztec, MaxiCode and other two-dimensional barcode formats.
Can it use fan-fold labels?
Yes. Compatible fan-fold direct thermal media can be fed through the printer.
Can it print linerless labels?
Selected DA Series configurations support linerless media. Choose a specifically configured linerless variant rather than using linerless media in a standard printer.
Can it automatically cut labels?
Selected variants can be supplied with a guillotine cutter. Cutter availability depends on the chosen printer model and configuration.
Can it peel labels from the backing liner?
Selected variants support a peel-off module that separates each label from its backing and presents it for immediate application.
Is Ethernet included?
Ethernet availability depends on the selected model and hardware configuration. Check the individual variant specifications before ordering.
Is the DA Series suitable for healthcare labels?
The range can print specimen, pharmacy and patient-tracking labels. Where disinfectant-ready or antibacterial housing is required, a dedicated healthcare configuration should be selected.
