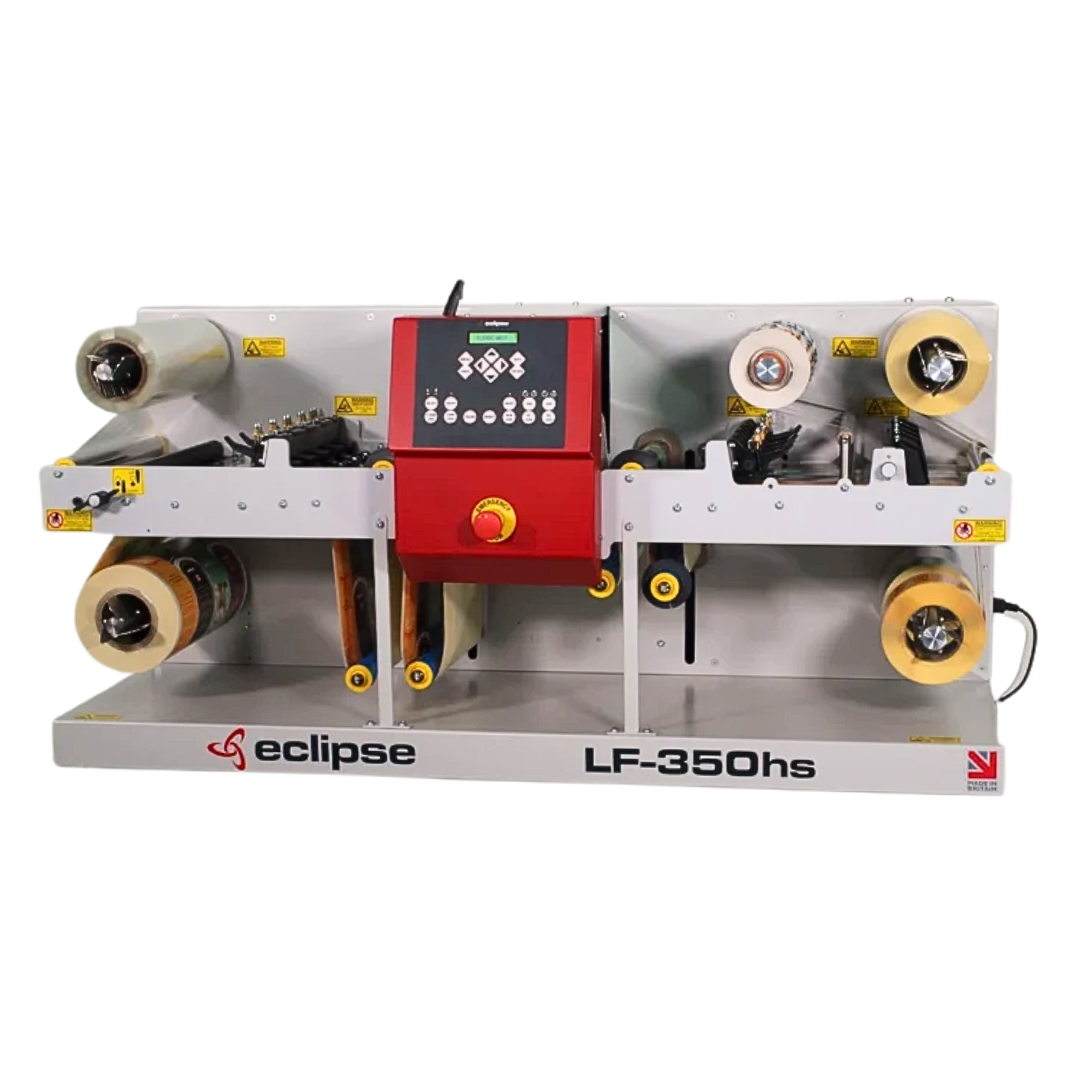

Eclipse LF350-HS Label Cutter & Finisher

The Eclipse LF350-HS is a fast-track digital label cutting and finishing machine designed for high-speed production, delivering labels at up to 10.5 metres per minute.

Built for medium to large bulk label orders as well as short runs, the LF350-HS uses advanced digital drag knife cutting technology with no cutting dies required. Its compact, bench-mounted design makes it ideal for factories and workshops where space matters.

Key Benefits

• High-speed finishing up to 10.5m/min
• No cutting dies required
• Accurate digital drag knife cutting
• Suitable for printed and unprinted media
• Handles medium to large production runs
• Compact footprint for bench-top installation
• Supports longer labels up to 800mm
• Easy operator controls for speed, position and stored parameters
• Optional barcode reading
• Low-maintenance setup with position indicators for faster format changes

Specifications

Media width: 350mm
Cut speed: Up to 1000mm/s
Cut type: Single or twin head drag knife with tangential emulation
Registration: Single point registration mark
Max label length: 800mm
Lamination: Unsupported laminate roll, 350mm cut width
Maximum roll diameter: 500mm
Waste matrix: Removal and rewind with reversible rewind, 76mm cores
Finished label rewind: Dual reversible rewind
Software: WinPlot for Windows, cutter control software, CorelDraw and Adobe Illustrator plug-ins
Power supply: Single phase 110/240VAC, 50/60Hz
Dimensions: 1450mm W x 838mm D x 725mm H
Weight: 140kg

Built in Great Britain

Eclipse machines are designed and manufactured in Great Britain with precision, care and attention to detail. Backed by experienced technical support and a professional dealer network, Eclipse is built to help label producers improve efficiency, reduce setup costs and handle a wider range of jobs with confidenc
