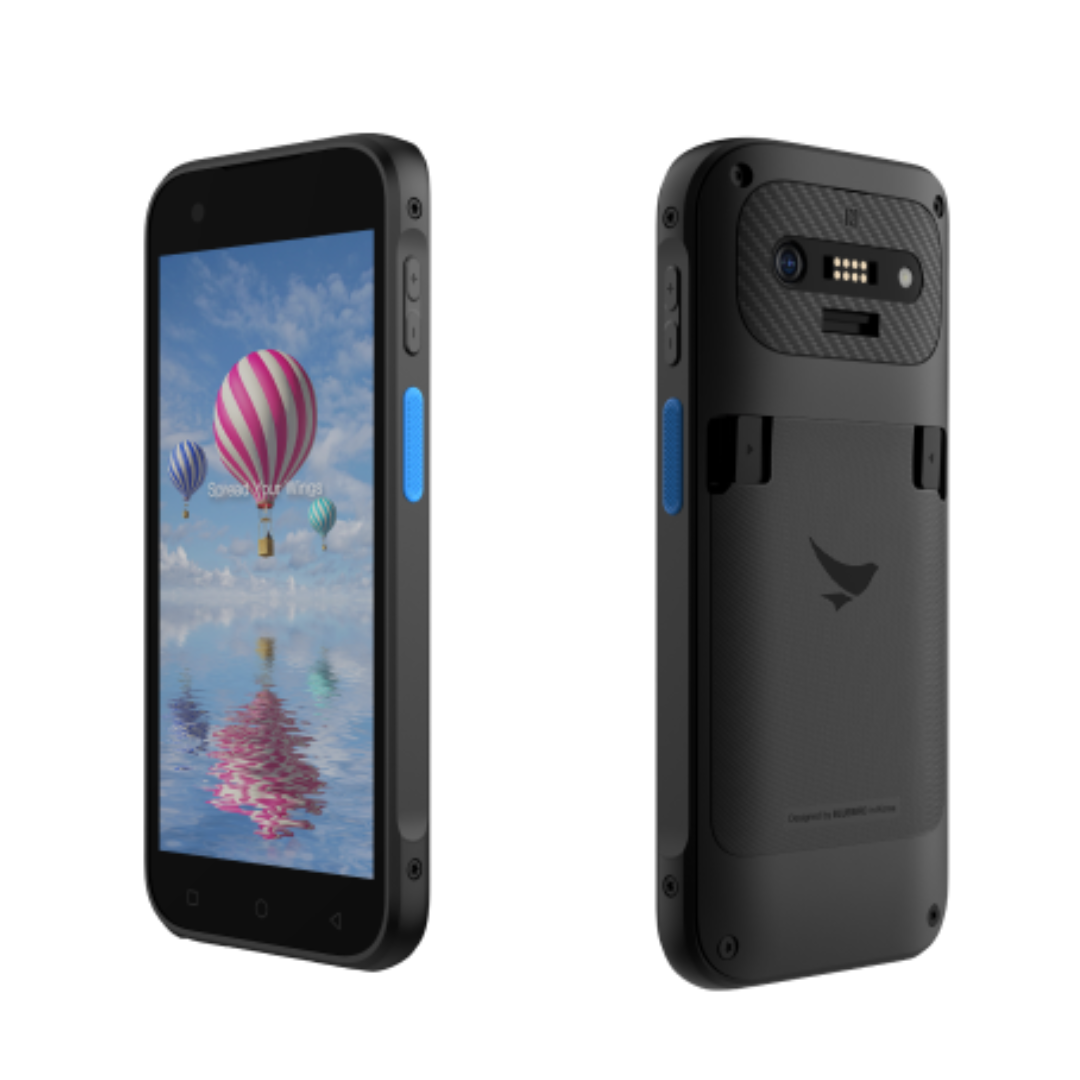

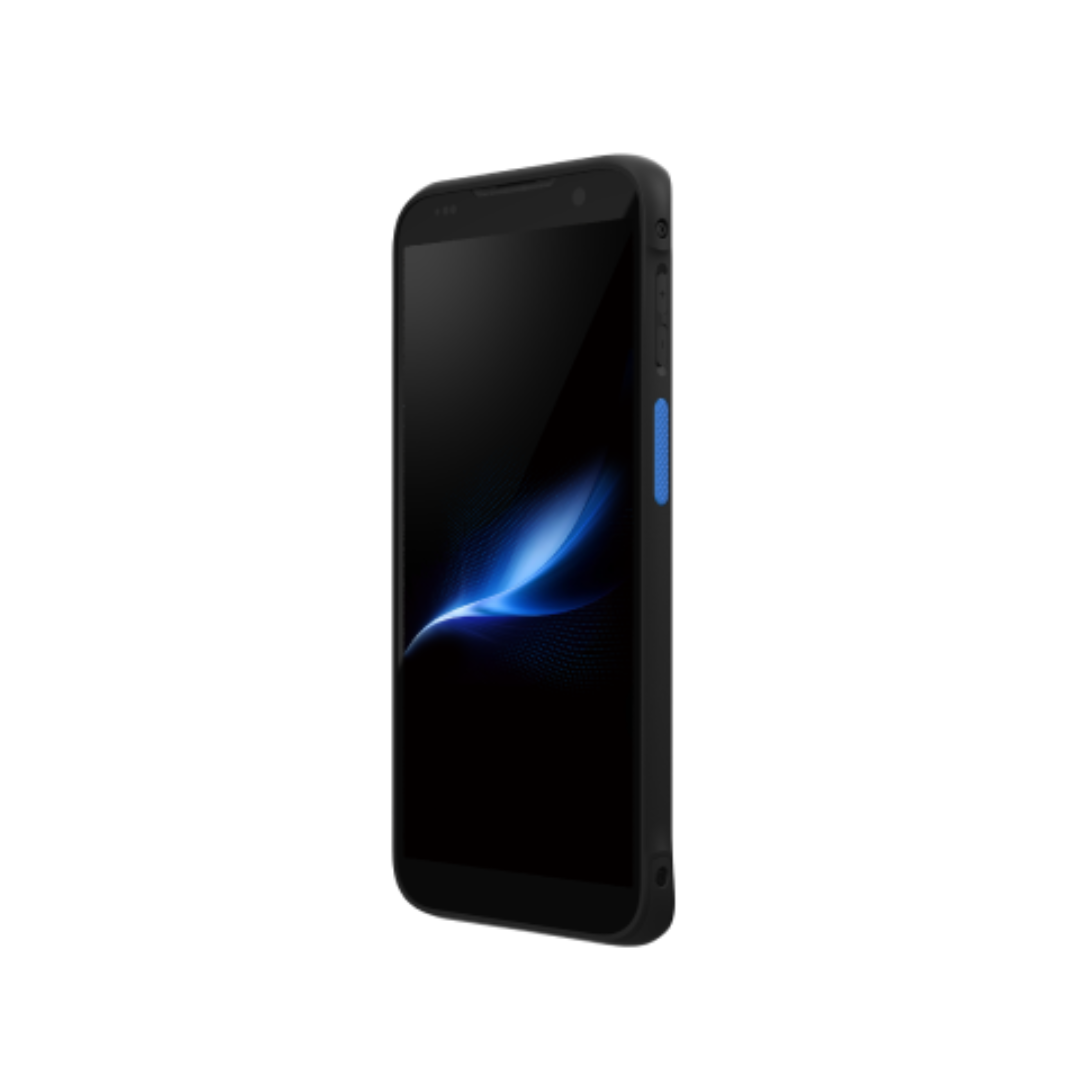

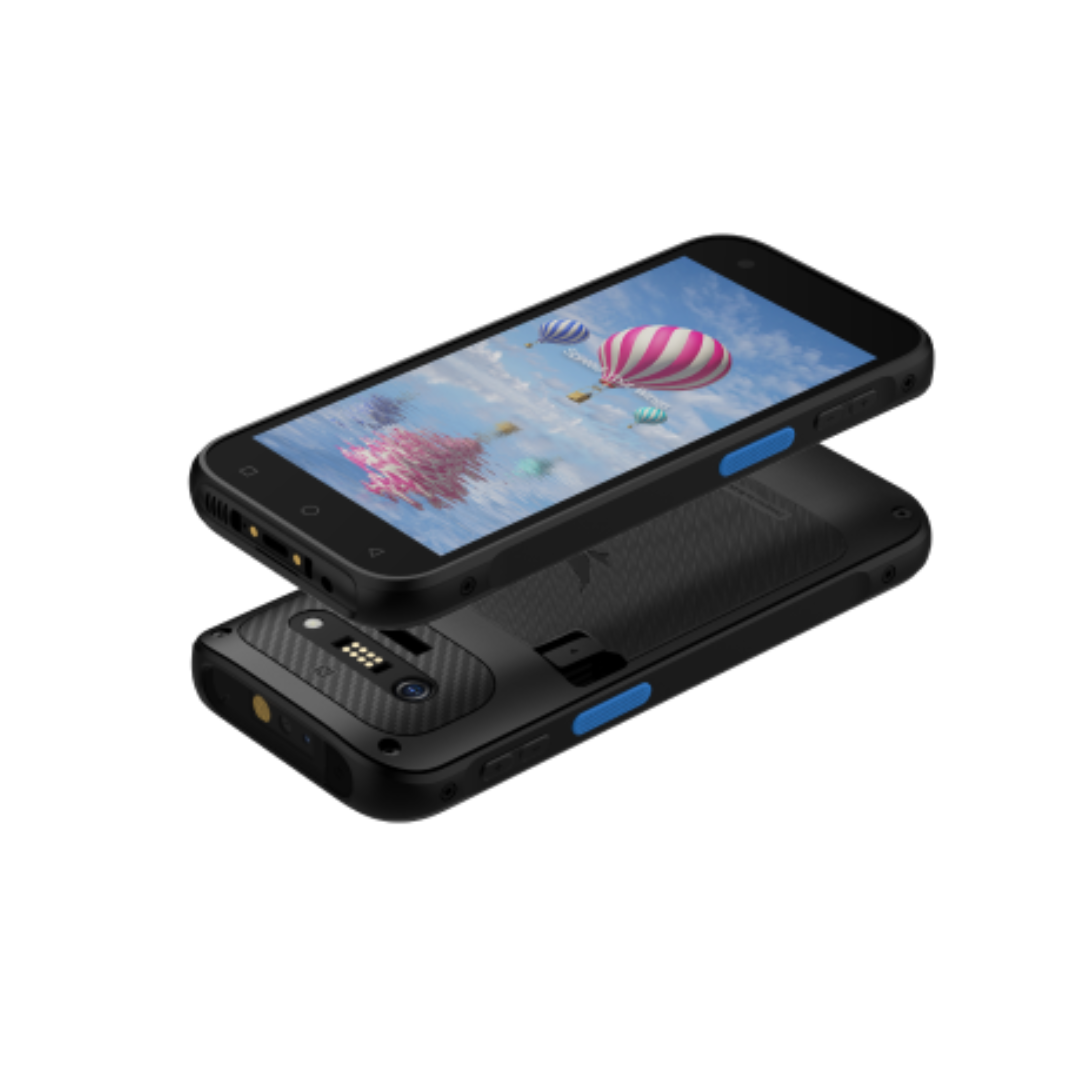

Bluebird S20 5G Rugged Mobile Computer and Barcode Scanner
The Bluebird S20 is a lightweight, enterprise-grade Android mobile computer designed for barcode scanning, inventory management, proof of delivery, retail operations, field service and mobile workforce applications.
It combines a large 6-inch FHD+ touchscreen, integrated enterprise barcode scanning, 5G mobile connectivity, Wi-Fi 6E and a replaceable hot-swap battery in a slim handheld device weighing approximately 243 grams.
Powered by the Qualcomm Snapdragon QC4490 octa-core processor, the S20 is designed to run business applications quickly while providing the durability required for warehouse, retail, transport and field operations.
Recommended standard configuration
5G WWAN, Android 13, 6 GB RAM, 64 GB UFS storage, 6-inch 400-nit FHD+ display, SE4710 1D/2D barcode scanner and 4,000 mAh battery.
Optional configurations: 8 GB/128 GB memory, 600-nit display, SE55 advanced-range scanner, extended battery, rugged protective boot and charging cradles.
Exact features depend on the selected Bluebird S20 sub-model and configuration.
Enterprise Mobility Without the Bulk

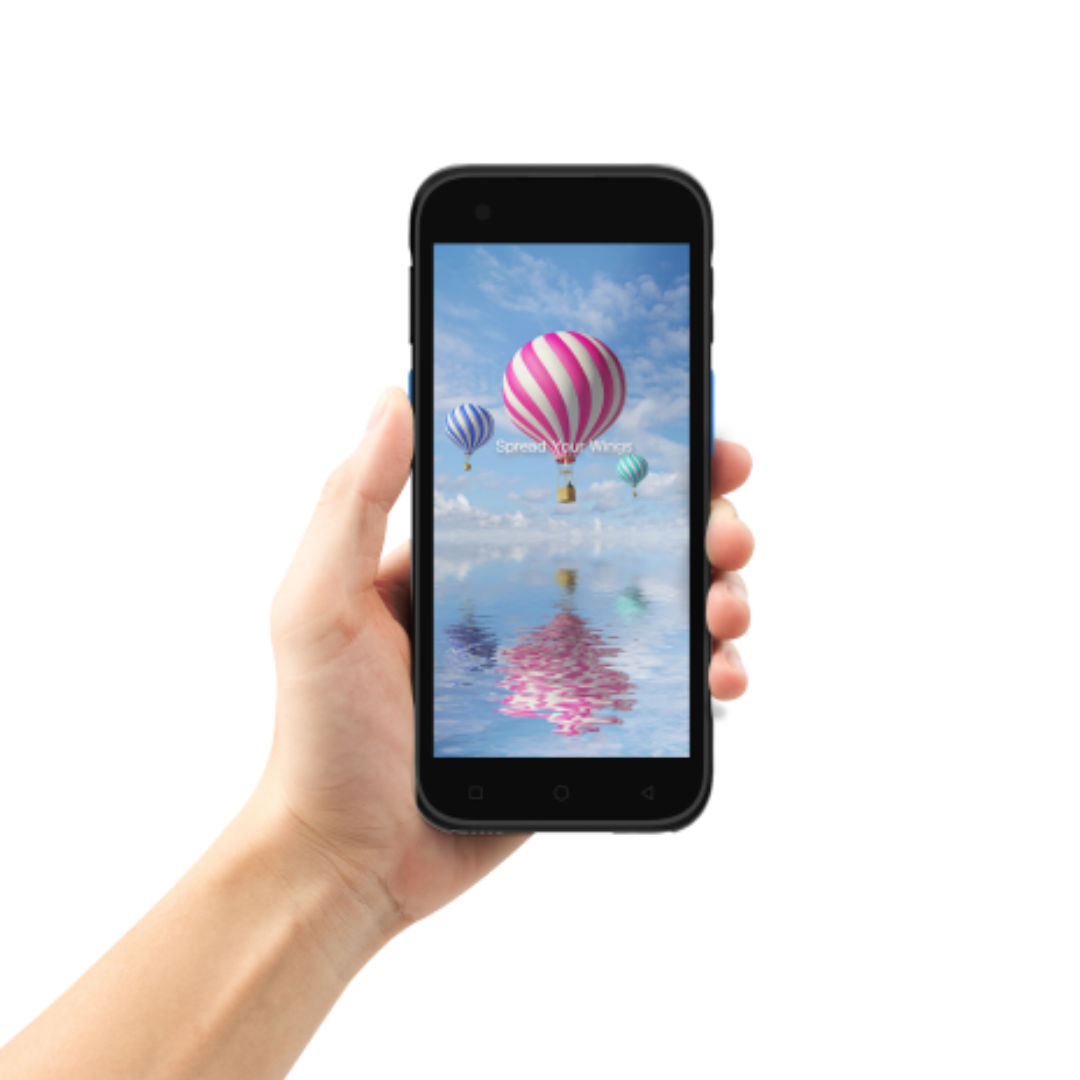

At only 12.5 mm deep, the Bluebird S20 provides a smartphone-style form factor without sacrificing enterprise scanning, removable batteries, dedicated scan controls or accessory connectivity.
Dual side scan buttons allow left- or right-handed barcode scanning, while the dedicated push-to-talk button supports fast communication between warehouse, retail, transport and service teams.
Bluebird S20 product overview
The Bluebird S20 is a rugged full-touch mobile computer built for organisations that need more durability, barcode performance and device management capability than a consumer smartphone can provide.
It is suitable for employees who need to scan barcodes, access business applications, communicate with colleagues, capture proof of delivery, update inventory or complete tasks while moving throughout a facility or working in the field.
- 6-inch enterprise Android mobile computer
- Integrated 1D and 2D barcode scanning
- 5G mobile broadband connectivity
- Wi-Fi 6E with 2 × 2 MU-MIMO
- Hot-swappable removable battery
- IP65 and IP68 environmental sealing
- Dedicated scan and push-to-talk buttons
- Optional Bluebird RFID reader integration
- Enterprise device-management software support
Processor, memory and Android operating system
| Processor | Qualcomm Snapdragon QC4490 octa-core |
|---|---|
| Processor speed | Up to 2.4 GHz |
| Operating system | Android 13 |
| Android support | Upgradeable to Android 17, subject to Qualcomm's roadmap and the applicable Bluebird warranty or upgrade program |
| Standard memory | 6 GB RAM and 64 GB UFS Flash |
| Optional memory | 8 GB RAM and 128 GB UFS Flash |
| Expandable storage | microSD support up to 2 TB |
The Qualcomm platform and UFS storage are designed to support barcode, warehouse, point-of-service, proof-of-delivery and mobile workforce applications with fast application response.
Android operating-system upgrade availability depends on the exact device configuration, Qualcomm support roadmap and Bluebird service program.
6-inch FHD+ touchscreen and ergonomic design
| Display size | 6 inches |
|---|---|
| Display resolution | FHD+ 1080 × 2160 |
| Standard brightness | 400 nits |
| Optional brightness | 600 nits |
| Touch input | Bare finger, gloved finger or compatible conductive stylus |
| Touchscreen protection | Corning Gorilla Glass |
| Water rejection | Touchscreen water-droplet rejection |
| Surface coating | Fingerprint-resistant anti-smudge coating |
The large screen provides additional room for mobile forms, inventory applications, maps, product information and task-management interfaces.
An ambient-light sensor can automatically adjust the backlight to suit changing workplace conditions.
Enterprise 1D and 2D barcode scanning
The Bluebird S20 can be configured with multiple enterprise scan engines to suit standard-range or extended-range barcode applications.
| Standard scan engine | SE4710 1D/2D scan engine |
|---|---|
| Optional scan engines | SE4100, SE4720 and SE4770 |
| Advanced-range option | SE55 1D/2D advanced-range scan engine |
| Imager protection | Corning Gorilla Glass 5 imager window |
| Scan controls | Dual-action side scan buttons |
| Optional trigger | Pistol-grip trigger handle |
The standard SE4710 configuration is suitable for common product, inventory, transport and retail barcode scanning at normal handheld distances.
The optional SE55 advanced-range scan engine is intended for applications where users must scan labels from further away, such as warehouse racking, loading areas and large distribution facilities.
Barcode performance depends on the chosen scan engine, barcode size, print quality, contrast, damage, scanning angle and working distance.
5G, Wi-Fi 6E and Bluetooth connectivity
The Bluebird S20 supports modern wireless connectivity for use throughout warehouses, stores, distribution centres and field-service environments.
| Mobile network | 5G NR Sub-6 with 4G LTE support on WWAN models |
|---|---|
| Wi-Fi | Wi-Fi 6E, IEEE 802.11ax |
| Wi-Fi architecture | 2 × 2 MU-MIMO and dual-band simultaneous operation |
| Bluetooth | Bluetooth 5.3 with secondary Bluetooth Low Energy |
| SIM support | One Nano SIM and one eSIM on applicable WWAN models |
| Private networking | Private LTE and 5G network support |
| Ethernet | Available through a compatible Ethernet cradle |
The Rest-of-World WWAN configuration includes a broad selection of 5G, 4G, 3G and 2G frequency bands. Carrier approval, network coverage and band compatibility should be confirmed for the exact S20 sub-model before deployment.
GPS and location services
Applicable WWAN configurations support global navigation services for delivery, courier, fleet and field-service applications.
- GPS
- GLONASS
- Galileo
- BeiDou
- QZSS
- Assisted GPS
- Qualcomm XTRA assistance
Dual-band GNSS is available on selected configurations. Confirm the exact navigation specification when precise or specialised location performance is required.
Replaceable battery and hot-swap operation
| Battery type | Rechargeable removable lithium-polymer battery |
|---|---|
| Standard battery | 4,000 mAh / 15.4 Wh |
| Extended battery | Approximately 6,000 mAh / 23.1 Wh Optional |
| Battery management | Bluebird BOS PowerManager |
| Hot swap | Supported |
| Charging connection | USB-C or two-pin cradle charging connector |
Hot-swap support allows a depleted removable battery to be replaced with a charged battery without completing a normal full device shutdown.
Bluebird's operating instructions should be followed when performing a battery hot swap. A fully charged replacement battery should be installed promptly to avoid device shutdown or possible data loss.
Drop protection, sealing and operating environment
| Environmental sealing | IP65 and IP68 with the battery installed |
|---|---|
| Standard drop rating | Multiple 1.5 metre drops to tile over concrete across the specified operating range |
| Drop rating with boot | Multiple 1.8 metre drops to concrete with the optional protective boot |
| Standard tumble test | 550 tumbles from 0.5 metres |
| Tumble test with boot | 550 tumbles from 1 metre with the optional protective boot |
| Operating temperature | -20°C to 55°C |
| Storage temperature | -40°C to 70°C |
| Humidity | 5% to 95%, non-condensing |
| Electrostatic discharge | ±15 kV air discharge and ±8 kV direct or indirect discharge |
The drop specifications are tested under defined manufacturer conditions and do not make the device indestructible. A protective boot is recommended for demanding warehouse, transport and field applications.
Cameras, NFC and data capture
| Rear camera | 16 MP autofocus with LED flash |
|---|---|
| Rear-camera features | PDAF, torch mode, HDR and improved low-light performance |
| Front camera | 8 MP fixed-focus camera |
| Alternative front camera | 5 MP fixed-focus option on selected configurations |
| Augmented reality | ARCore certification |
| NFC standards | ISO 14443 Type A and B, FeliCa and ISO 15693 |
| Contactless functions | Host card emulation and contactless-payment support |
Camera and NFC functions can support proof of delivery, document capture, asset records, ticket validation, staff identification, loyalty applications and contactless workflows.
Apple VAS and extended polling capabilities are available on applicable optional configurations.
Buttons, audio and physical interfaces
The Bluebird S20 includes physical controls designed for repeated enterprise use.
- Power button
- Volume-up and volume-down buttons
- Dual side barcode-scan buttons
- Dedicated push-to-talk button
- Programmable top alert button
- Trigger-handle button support through the rear interface
- Audible notification tones
- Multi-colour notification and scan LEDs
- Vibration and haptic feedback
| Bottom interface | USB-C 3.1 OTG with DisplayPort mode |
|---|---|
| Charging interface | Two-pin cradle charging connector |
| Rear interface | Eight-pin communication connector for compatible accessories |
| Microphones | Dual noise-cancelling microphones |
| Audio | Speakerphone, HD voice, USB-C PTT headset and Bluetooth headset support |
Bluebird RFR900 and RFR901 RFID reader compatibility
The S20 can form part of a mobile UHF RFID solution when connected to a compatible Bluebird handheld RFID reader.
Bluebird identifies the RFR900 and RFR901 as compatible handheld UHF RFID-reader options. Depending on the configuration, connectivity may use a Bluebird adapter mount, Bluetooth, NFC or Wi-Fi.
- Mobile RFID stock counting
- Warehouse inventory audits
- Asset identification
- Retail item location
- Receiving and dispatch verification
- RFID tag commissioning and validation
The RFID reader, adapter, software and RFID tags are not integrated into the standard S20 handheld and are supplied separately. Compatibility should be confirmed for the intended S20 and RFID reader configuration.
Bluebird BOS enterprise software
Bluebird offers the BOS software platform to assist with device staging, security, communication and fleet management.
- BOS Provisioning
- BOS Staging
- BOS Kiosk
- BOS Virtual Key
- BOS Keyboard
- BOS VoIP
- BOS PTT and PTT Essential
- BOS Wi-Fine Wi-Fi analysis
- BOS EMM
- BOS OTA
- BOS OEMConfig
- BOS SecureCare
- BOS SDK and Data Wedge API
These tools can help administrators deploy applications, restrict unauthorised device functions, configure wireless settings, manage barcode data and support devices across a fleet.
Bluebird also lists compatibility with selected third-party enterprise mobility management and push-to-talk solutions. Software licensing and compatibility should be confirmed separately.
Recommended business applications
Warehouse and fulfilment
- Receiving and put-away
- Stock picking
- Inventory and cycle counting
- Order verification
- Packing and staging
Retail
- Price and inventory checks
- Item location
- Assisted selling
- Shelf replenishment
- Planogram and promotion compliance
Transport and courier services
- Proof of delivery
- Parcel scanning
- Route and location services
- Vehicle and asset management
- Work-order validation
Field service
- Mobile work orders
- Asset inspection
- Invoicing
- Parts management
- Staff communication
Hospitality and entertainment
- Ticket validation
- Membership and loyalty programs
- Gift-card scanning
- Access control
- Front-of-house task management
Asset and RFID management
- Asset verification
- RFID stock counts
- Equipment location
- Inventory audits
- Chain-of-custody records
Complete technical specifications
| Manufacturer | Bluebird Inc. |
|---|---|
| Model | S20 |
| Device type | Enterprise full-touch handheld mobile computer |
| CPU | Qualcomm Snapdragon QC4490 octa-core, 2.4 GHz |
| Operating system | Android 13 |
| Standard memory | 6 GB RAM / 64 GB UFS Flash |
| Optional memory | 8 GB RAM / 128 GB UFS Flash |
| Dimensions | 165 × 76.9 × 12.5 mm |
| Weight | Approximately 243 g |
| Display | 6-inch FHD+, 1080 × 2160 |
| Display brightness | 400 nits standard or 600 nits optional |
| Storage expansion | microSD up to 2 TB |
| Standard battery | 4,000 mAh / 15.4 Wh |
| Optional battery | Approximately 6,000 mAh / 23.1 Wh |
| Hot swap | Supported |
| WWAN | 5G, 4G, 3G and 2G support, depending on sub-model |
| WLAN | Wi-Fi 6E, 802.11ax, 2 × 2 MU-MIMO |
| Bluetooth | Bluetooth 5.3 |
| NFC | ISO 14443 A/B, FeliCa and ISO 15693 |
| Standard scanner | SE4710 1D/2D scan engine |
| Optional scanners | SE4100, SE4720, SE4770 or SE55 |
| Rear camera | 16 MP autofocus with LED flash |
| Front camera | 8 MP fixed focus |
| Environmental sealing | IP65 and IP68 |
| Operating temperature | -20°C to 55°C |
| USB interface | USB-C 3.1 OTG with DisplayPort mode |
Compatible accessories
Bluebird lists a broad range of optional accessories for fixed, mobile and shift-based deployments.
- Single-slot charging cradle
- Single-slot USB and Ethernet cradle
- Four-slot charging cradle
- Four-slot Ethernet cradle
- Standard replacement battery
- Extended-capacity battery
- Four-slot battery charger
- Vehicle charger
- Hand strap
- Protective rugged boot
- Conductive stylus and tether
- Soft holster
- Wearable wristband
- Pistol-grip trigger handle
- Screen protector
- Bluebird RFR900 or RFR901 RFID reader
Accessories are generally sold separately. Compatibility may depend on the installed battery, protective boot, scanner and WWAN configuration.
What is included?
The Bluebird quick guide depicts the standard package as containing the S20 mobile computer and removable battery.
Chargers, USB cables, cradles, protective boots, hand straps, extended batteries and other accessories may be supplied separately or included only in selected bundles.
Check the product bundle or quotation for the exact package contents before ordering.
Frequently asked questions
Is the Bluebird S20 a barcode scanner or a mobile phone?
The S20 is an enterprise mobile computer. It combines Android applications and 5G communication with a dedicated industrial 1D/2D barcode scan engine, physical scan buttons and replaceable battery.
Does the Bluebird S20 support 5G?
Yes. Applicable WWAN models support 5G NR Sub-6 as well as 4G, 3G and 2G networks. The exact bands depend on the regional sub-model.
Does the S20 support Australian mobile networks?
The Rest-of-World version lists several frequency bands used in Australia, including selected low-band and mid-band 5G frequencies. Exact carrier certification and compatibility should be confirmed for the supplied WWAN SKU.
Can the Bluebird S20 scan QR codes?
Yes. Its integrated enterprise 1D/2D scan-engine options support common two-dimensional barcode formats, including QR Code and Data Matrix.
Which scanner comes standard?
Bluebird lists the SE4710 1D/2D scan engine as the default scanning configuration. Other scan engines, including the SE55 advanced-range scanner, are optional.
Can it scan barcodes from warehouse racking?
The standard SE4710 is intended for normal handheld scanning distances. For longer-range warehouse scanning, choose an S20 configured with the optional SE55 advanced-range scan engine.
Can the battery be replaced during a shift?
Yes. The S20 uses a removable battery and supports battery hot swap, allowing a depleted battery to be exchanged for a charged battery without a normal full shutdown.
Is the Bluebird S20 waterproof?
The device carries IP65 and IP68 sealing with its battery installed. These ratings apply under defined test conditions and do not mean the device is protected against every type of liquid exposure.
How far can the S20 be dropped?
The standard device is tested for multiple 1.5 metre drops. With the optional protective boot, the stated test height increases to 1.8 metres under the manufacturer's test conditions.
Does the S20 work with RFID?
Yes. It can connect to compatible Bluebird handheld UHF RFID readers, including the RFR900 and RFR901. The RFID reader and mounting or communication accessories are sold separately.
Can the S20 be mounted in a vehicle?
Bluebird lists vehicle-charging and cradle accessories. The correct mounting, charging and installation equipment should be selected for the vehicle and application.
Can we centrally manage multiple Bluebird S20 devices?
Yes. Bluebird provides BOS provisioning, staging, kiosk, EMM, OTA-management and security tools. The S20 also supports selected third-party enterprise mobility management platforms.
Configuration notice: Product specifications vary by Bluebird S20 sub-model, memory, display, scanner, battery and regional radio configuration. Confirm the final manufacturer part number before ordering.
