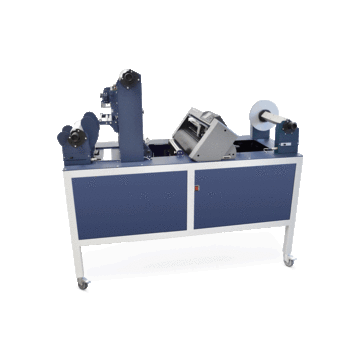

Scorpio Label Finisher SCR35

Code: SCR35

The Scorpio Series are all-in-one systems that unwind, digitally die-cut, remove the excess label material around each die-cut shape, slit, and rewind offering you everything to professionally cut and finish labels.

All systems provide a very accurate label finishing solution using cutting plotter technology. This allows you to cut different types of material and shapes on the fly without the added cost of dies.

The units are equipped with a cutter management tool that works together with a camera forming an integrated optical black-mark registration system providing cutting speed optimization and avoiding synchronization issues.

All features that turn into full flexibility, limitless variations in label design and smooth workflow.

Producing full bleed labels will no longer be a nightmare. Print over-bleed artworks and enjoy the quality provided by our Digital Label Finishing System!

The Scorpio Series are digital label finishers truly meant to meet the on-demand short run label finishing solution for use with digital color label printers and presses.

Some benefits of using the Scorpio Series:

Short run label production in-house means reducing inventory requirements and costs
Producing full bleed labels will no longer be a nightmare

Laminating for labels added durability (no need for special media)
No need to order pre-die cut label rolls
No need for ultra-precise label margin adjustment when printing in full bleed
No need to set up a minimum gap between labels when printing in full bleed (saving on media)

Optical Sensing	D.P.R. Scorpio series use a camera forming an integrated optical black-mark registration system allowing to read one black-mark for each cutting layout. Optimizing cutting speed. No synchronization issues.
Adjustable Clutch	This feature allows to obtain flat tight finished rolls and waste material neatly rewound.
Size Does Matter	D.P.R. Scorpio series size help operators have more room to easily and quickly load the media and get the machine ready to work in a few minutes.
Media Track	D.P.R. Scorpio series are equipped with an ultrasonic sensor system that generates a loop of media both in plotter input and output in order to guarantee a smooth media track during the cutting operations.
Slitter Blades	D.P.R. Scorpio series are equipped with inexpensive multi edge blades. Blade life extended 4 times as much.
Blank Labels	D.P.R. Scorpio seires can cut blank labels. Through the Scorpio software, operators only need to set label step. No printed black-mark required on the media.
Software	D.P.R. Scorpio series come with a tailored software to be installed on any computer customers own.
Media	D.P.R. Scorpio series allow to use any media from 101,6 mm (4”)
Media	up to 355 mm (14”) wide.
Matrix Rewinding	D.P.R. Scorpio series feature synchronized Motorized Core Holders that avoid any matrix tear while removing and rewinding.
Easy To Move	D.P.R. Scorpio series are equipped with four wheels that allow to easily move the machine.
Remote Assistance	Customers whose computers are connected to internet can be reached by one of our operators for remote assistance and firmware upgrades.

Input / Output Roll Diameter	250mm (9.84”)
Minimum Web Width	100mm (3.94”)
Maximum Web Width	355mm (14”)
Maximum Cutting Width	330mm (13”)
Minimum Slitting Width	19mm (0.75”)
Minimum Label Length	10mm (0.39”)
Maximum Label Length	450mm (17.71”)
Lamination Module	NO
Number of Slitting Blades	up to 13
Maximum Media Thickness	0.25mm (10 mil)
Maximum Cutting Speed	600mm/s (24 in/s) in all directions
Roll Core Size	76mm (3”)
Agency Certifications	CE, FCC, RoHS
Warranty	One Year Parts and Labor. Usage Limitation may apply
