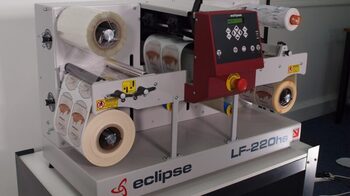

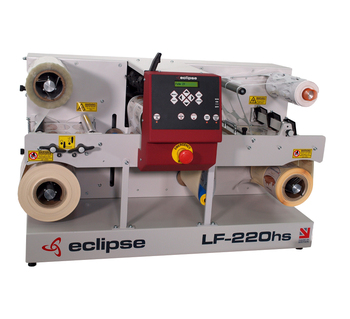

ECLIPSE LF220hs Digital Label finishing machine
Code: ECLIPSE LF220hs
Delivers high-speed labels up to 8.5m per minute !
This economical space saving model has a small footprint developed to sit neatly in the corner of the factory or workshop on a sturdy bench. Accurate precision engineered, designed to handle large bulk label orders and short runs, using digital drag knife technology developed using Summa technology – Cutting dies are not required !
The Eclipse LF220hs benefits from being designed and developed specifically for end users wishing to produce medium to large bulk orders.
- Accurate: Precision Engineering
- Space Saving: Medium footprint
- Capacity: Large to Medium Media Web
- High Speed: Up to 8.5m per minute
- Longer Label Length: Up to 386mm
- Easy-to-Use: Developed with state-of-the-art software & management systems
- Straightforward: The operator panel allows to-set and recall parameters, rotating speed, & position
- Producers: Different Shape Label (automatically changing from one to another)
- Operates: Drag knife and tangential emulation
- Simple: Fluid simulation program guarantees the best inline label production
- Low Maintenance: Machine uses position indicators to recall the head & roll positions, making any format change faster & easier
| MEDIA WIDTH | 220mm (8.6”) |
| LINEAR CUT SPEED | Dependent on graphic |
| CUT SPEED | 1400mm Axial |
| CUT TYPE | Drag knife and tangential emulation |
| CUT to REGISTRATION | Single point registration mark |
| CUT ABILITY | Both printed and unprinted media |
| MAX LABEL LENGTH | 386mm (15.1”) repeat |
| LAMINATION | Unsupported laminate roll – cut width 0.4000g |
| MAXIMUM ROLL DIAMETER | 250mm (9.8”) |
| WASTE MATRIX | Removal and re-wind – reversible re-wind with 76mm core |
| DUAL | Reversible finished label rewind |
| REWIND ROLL CORE SIZE | 76mm (3”) |
| INTERFACE & SOFTWARE | WinPlot (Windows 0S) cut software, cutter control parameter software. Plug-ins for CorelDraw and Adobe Illustrator |
| POWER SUPPLY | Single phase 110/240VAC, frequency 50/60HZ |
| DIMENSIONS | Width: 1030mm (40.5”) – Depth: 685mm (27”) – Height 640mm (25.25”) |
| WEIGHT | 67kg |
